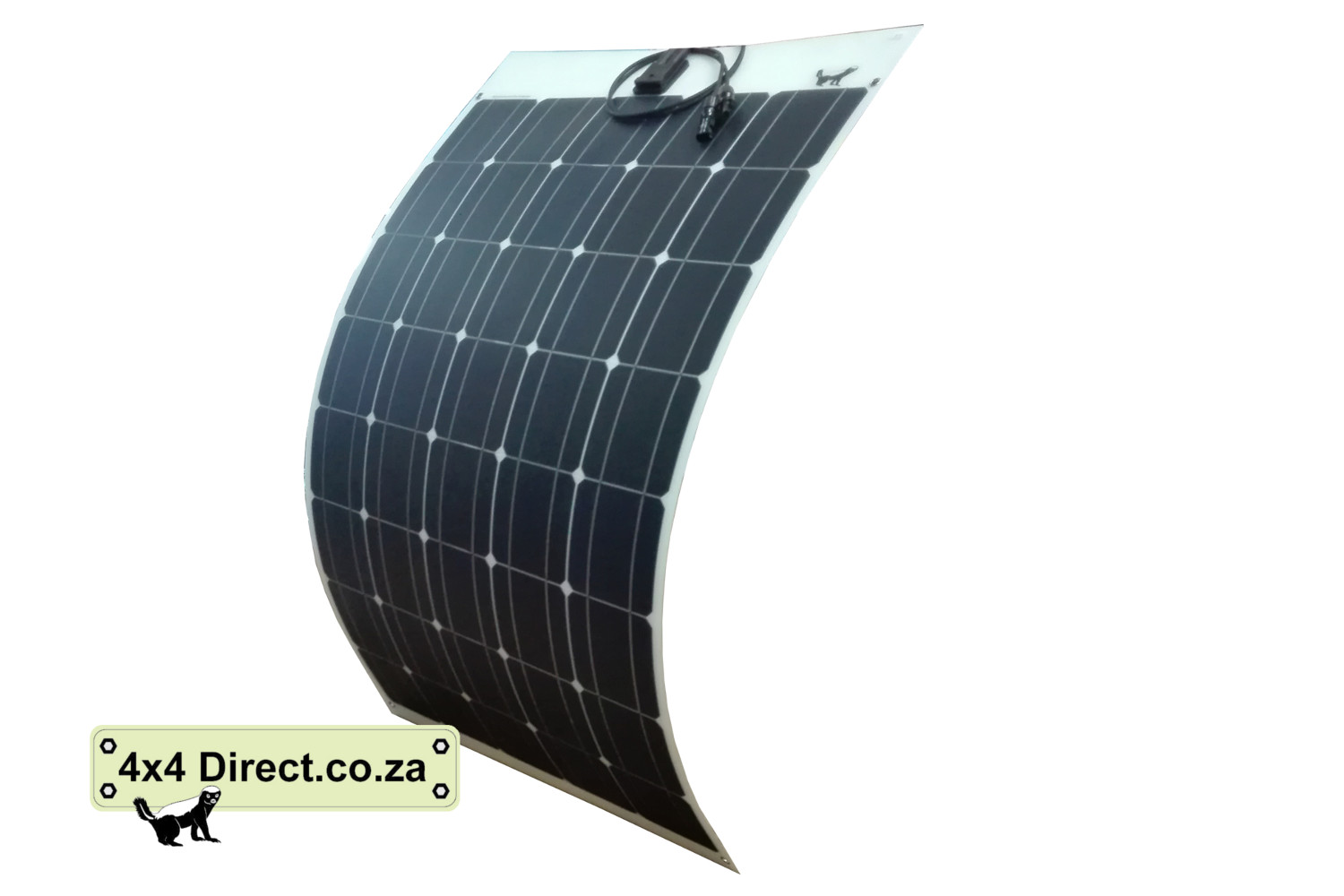

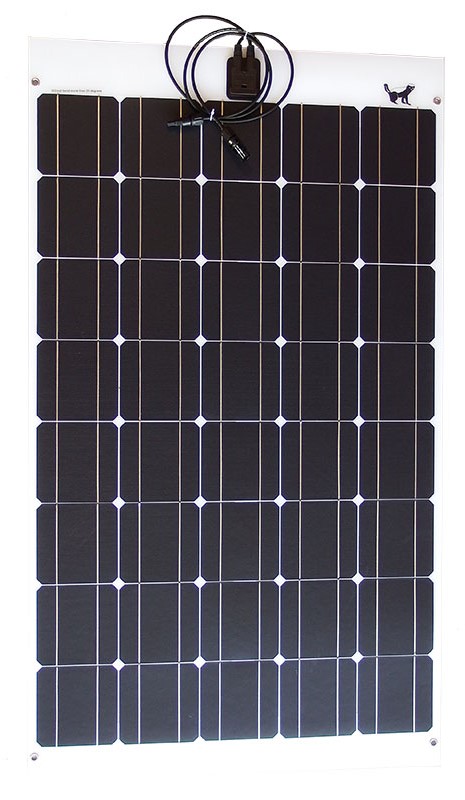

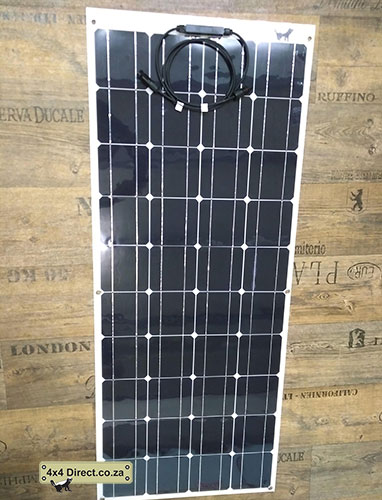

120 watt Semi Flexible Solar Panel
PLEASE NOTE THE FOLLOWING: The Output voltage is 24 Volts. Make sure your charge controller can handle 24Volts Input
Max Power (Pmax) = 120Watt
Open Circuit Votage (Voc) = 24V
Short Circuit Current (Isc) = 6.6A
Max Power Voltage (Vmp) = 20V
Max Power Current (Imp) = 6A
Max System Voltage = 600 VDC
Size = 1150 x 660 x 3mm
Above power ratings at 25 deg Celcius
Material:
ETFE (Ethylene Tetrafluoroethylene): Front transparent fluoropolymer film. UV-resistant, anti-soiling, durable against weathering.
EVA (Ethylene Vinyl Acetate): Encapsulant layer. Bonds solar cells to outer films and absorbs mechanical stress.
CELL: The photovoltaic cells themselves (usually crystalline silicon).
EVA: Second encapsulant layer. Provides electrical insulation and mechanical cushioning on the back side.
TPT (Tedlar-PET-Tedlar): Backsheet. Provides moisture barrier, electrical insulation, and protection against UV and mechanical damage.

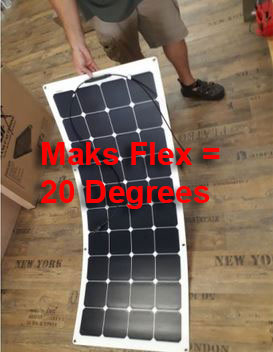

NOTE: NOT ROLLABLE – DO NOT BEND MORE THAN 20 Degrees
