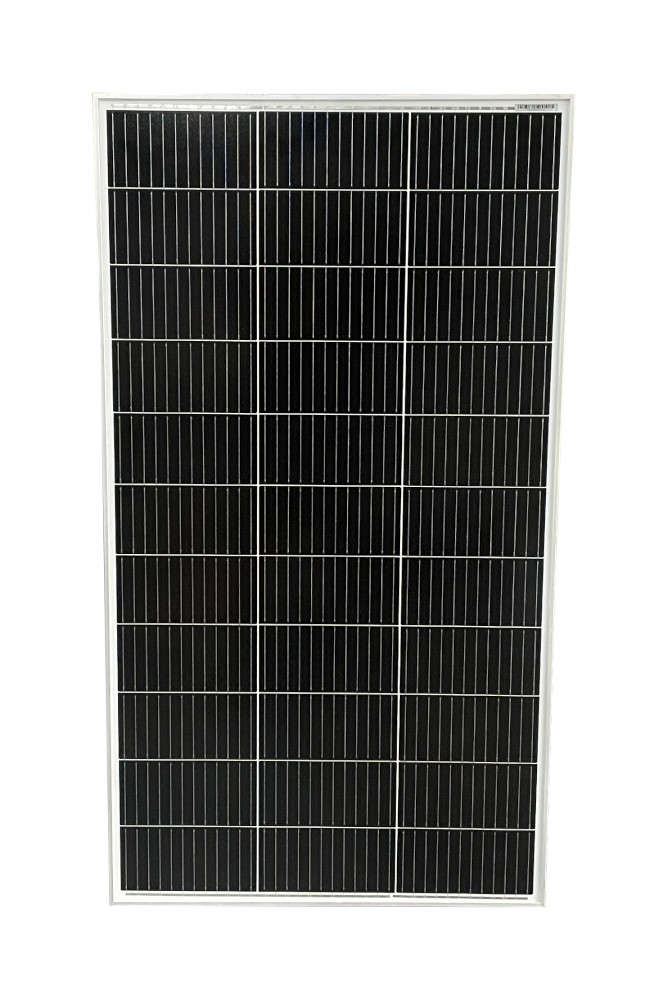

160 Watt Mono Crystaline Solar panel
Model Type: AS160m-40
Maximum Power (Pmax): 160W
Cell Type: Mono
Tolerance(To): +3%
Voltage at Pmax(Vmp): 17.50V
Current at Pmax (Imp): 9.14A
Open-circuit voltage(Voc): 21.0V
Short-Circuit Current(Isc): 10.03A
Operating Temperature: -40 to 85 Degrees Celsius
Maximum System voltage: 1000VDC
No. of Cells and connections: 33(3*11)
Module efficiency 19.7%
Guarantee is 2 years and the panels have a 10 year manufacturers warranty
Dimensions: 1210mm Length x 670mm wide x 25mm high
This is a special size especially made for 4×4 Direct. The dimensions is close to our old 120 watt poly panel, but it now deliveres 160 watt in the same size.
