Rocker Switch On-Off-On (Maintained) 2-Way
This maintained On-Off-On 2-way rocker switch is designed for 12V and 24V DC automotive and auxiliary applications where a single power source must be switched between two outputs. The switch remains in the selected position, with a center OFF and two ON positions, making it ideal for dual-function circuits such as amber/white lights or accessory A/B selection. An integrated LED indicator provides clear visual status and requires a ground connection to operate.

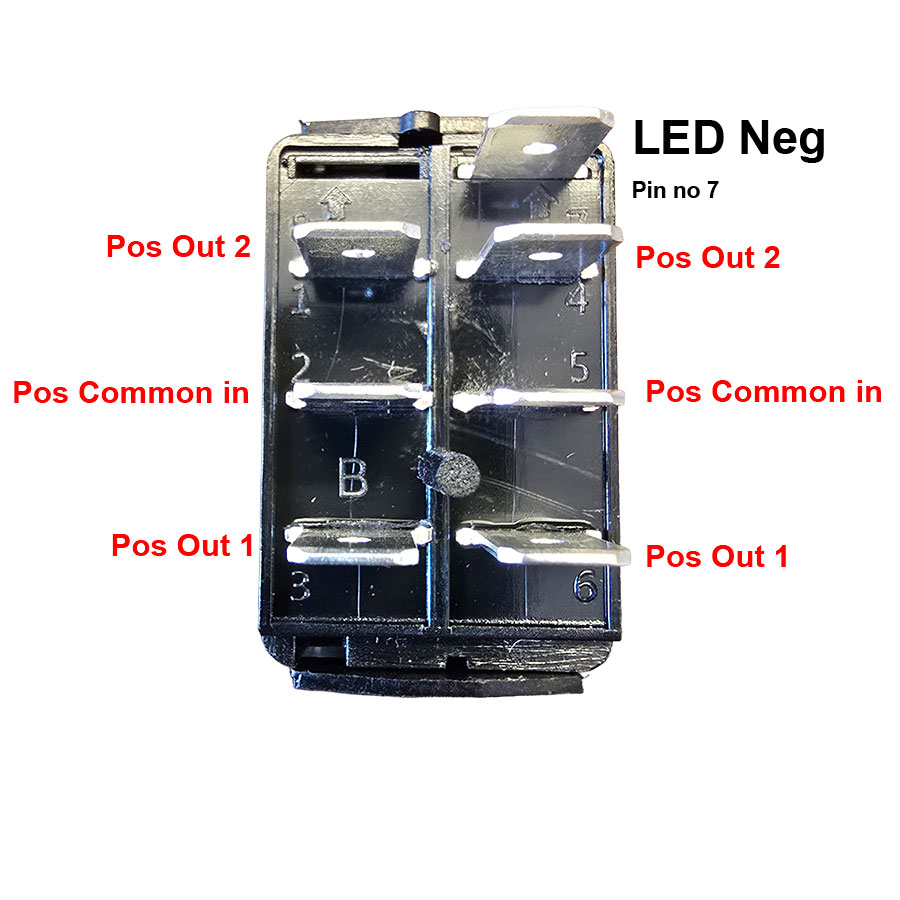

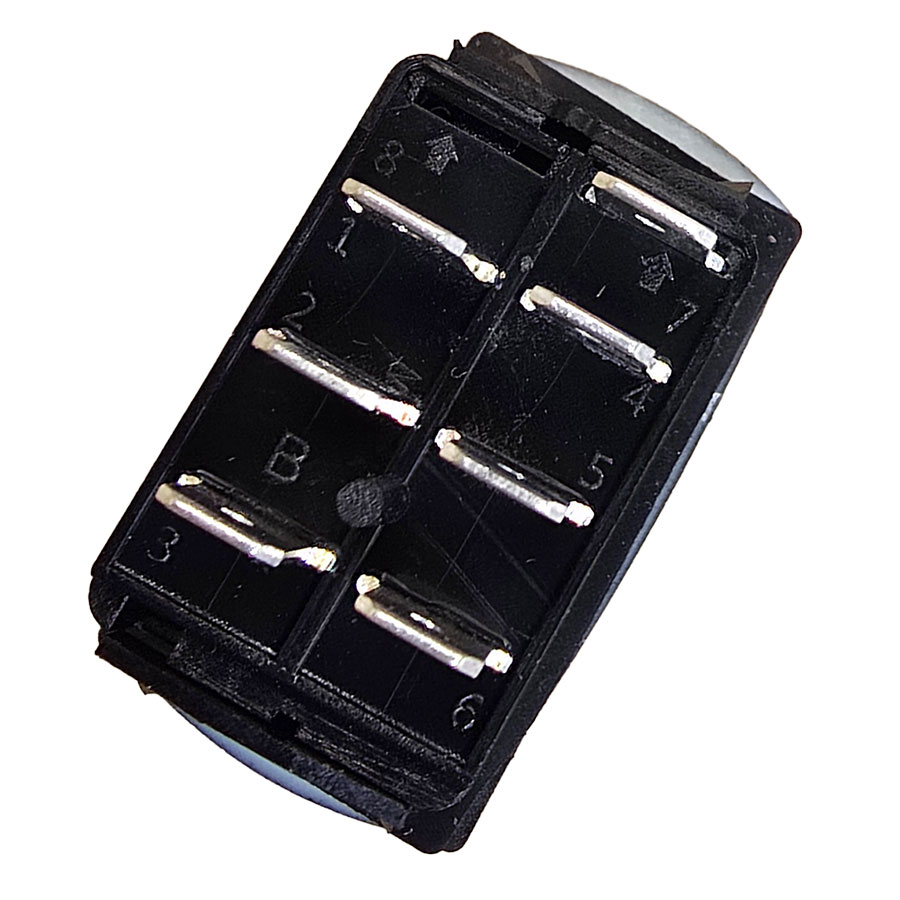

Key details and wiring logic:
Pin 1 & 4 – Positive Output 2
Pin 2 & 5 – Positive Common Input (fused supply)
Pin 3 & 6 – Positive Output 1
Pin 7 – LED Negative / Earth
Additional features:

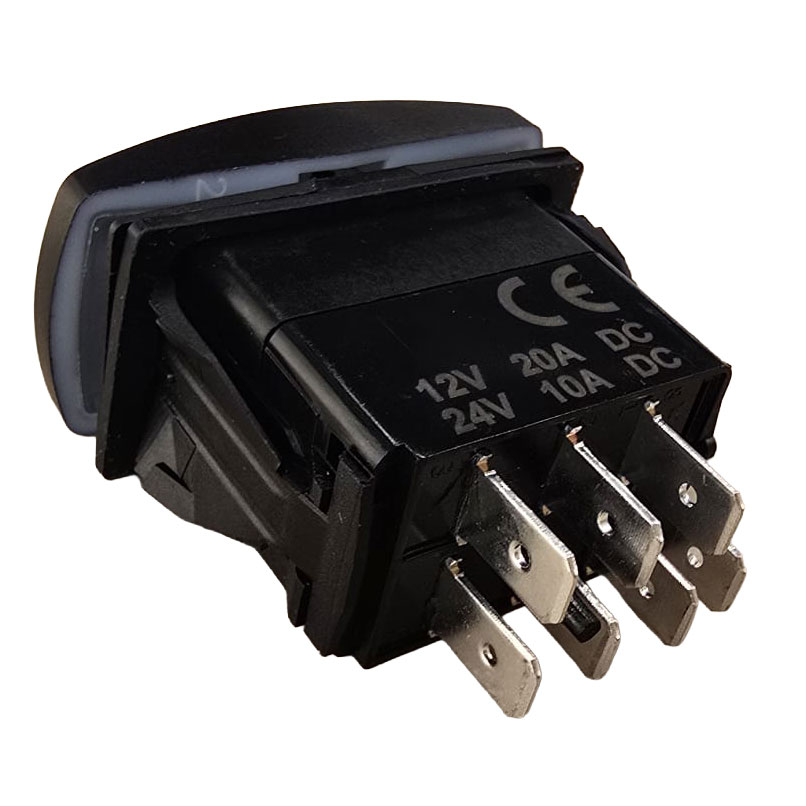

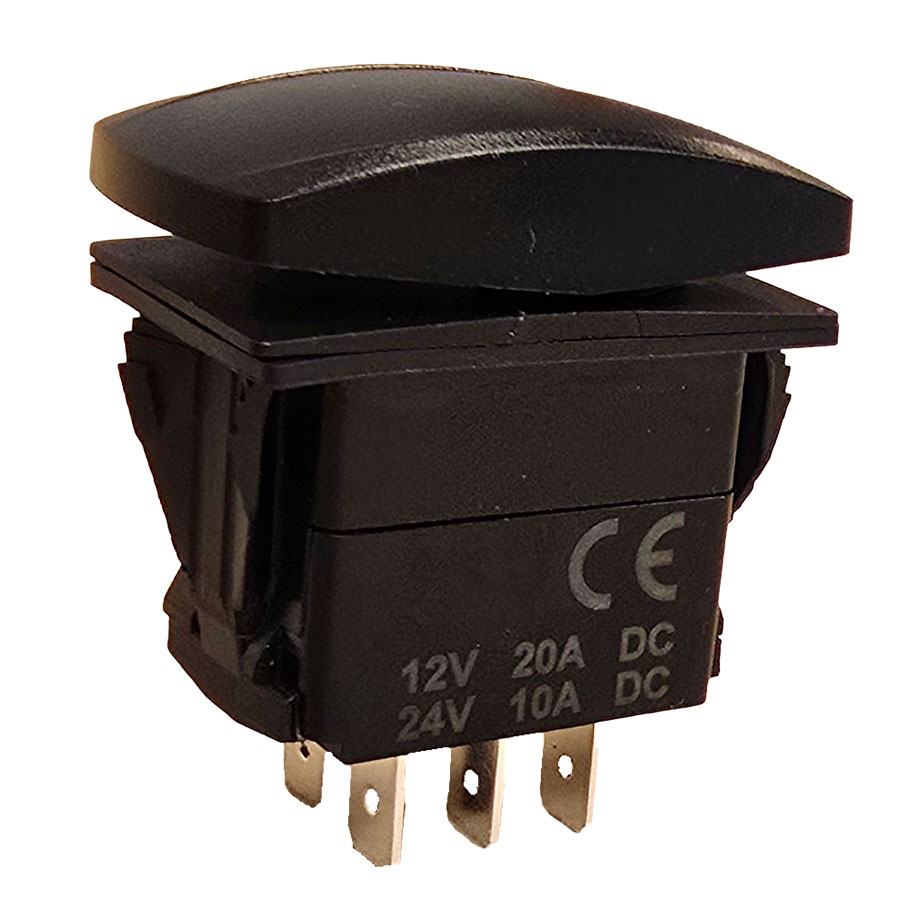

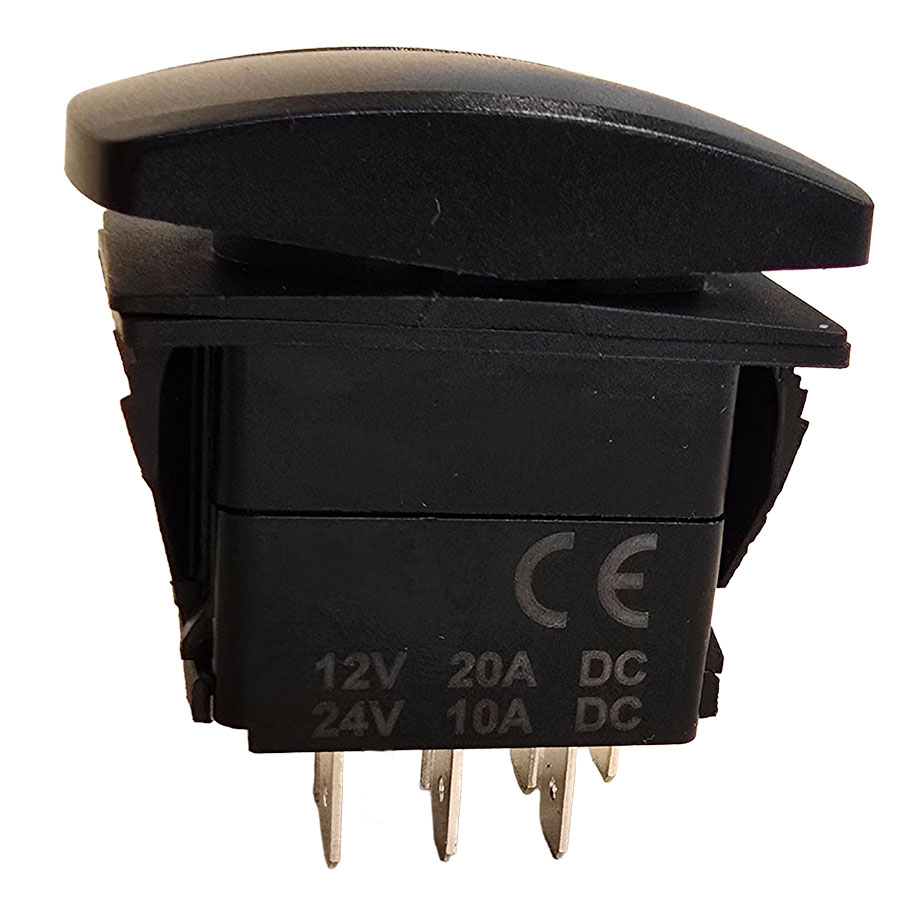

Rated 20A @ 12V DC and 10A @ 24V DC
Built-in LED indicator (ground required on Pin 7)
Suitable for 4×4, automotive, caravan, marine, and off-road use

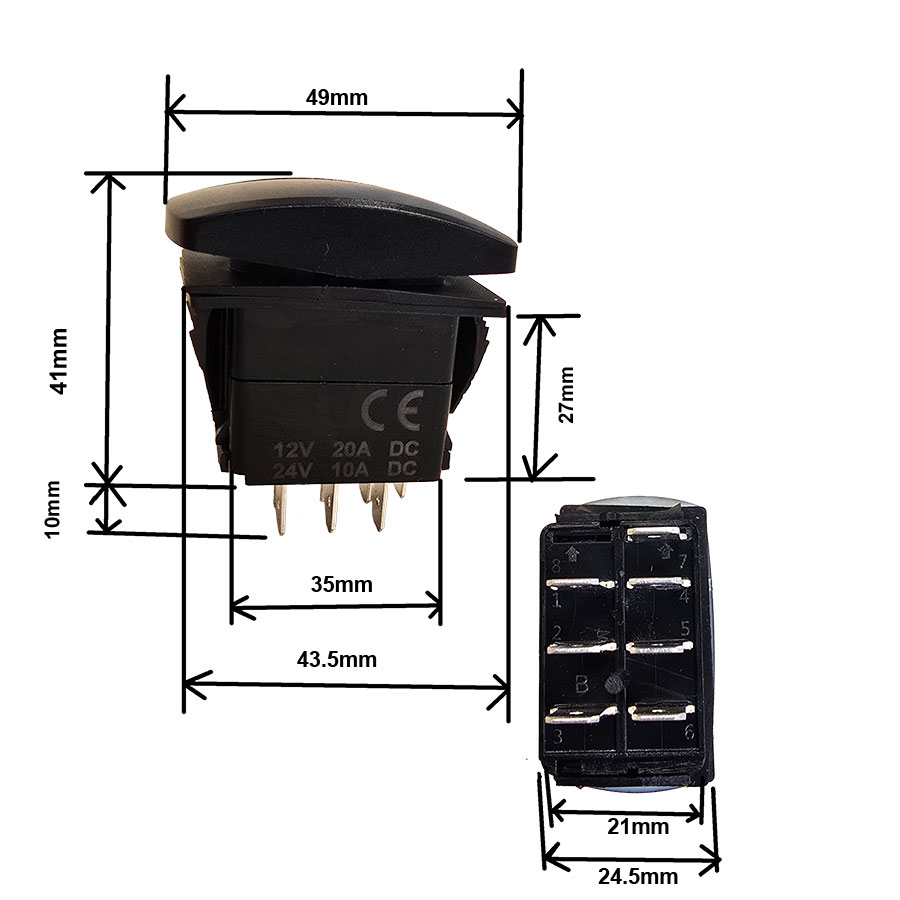

Snap-in panel mount with spade terminals for easy installation
Recommended to use a relay for high-current loads
This switch provides a clean, reliable solution for controlled circuit selection in DC systems.
