200W Badger BXF-Plus Foldable Portable Solar Panel
If you need proper solar output without permanently mounting panels to your vehicle, this is the solution.
The Badger BXF-Plus 4x50W delivers a full 200W through four monocrystalline panels in a durable foldable design. With an operating voltage of 17.4V and 11.5A charging current, it is perfectly suited for 12V battery systems when paired with a quality MPPT controller.
In strong sunlight, expect real-world charging around 9–11A depending on conditions. That makes it ideal for:
- Dual battery setups
- Camping fridges
- Lithium batteries
- Portable power stations
- Caravan and overland systems

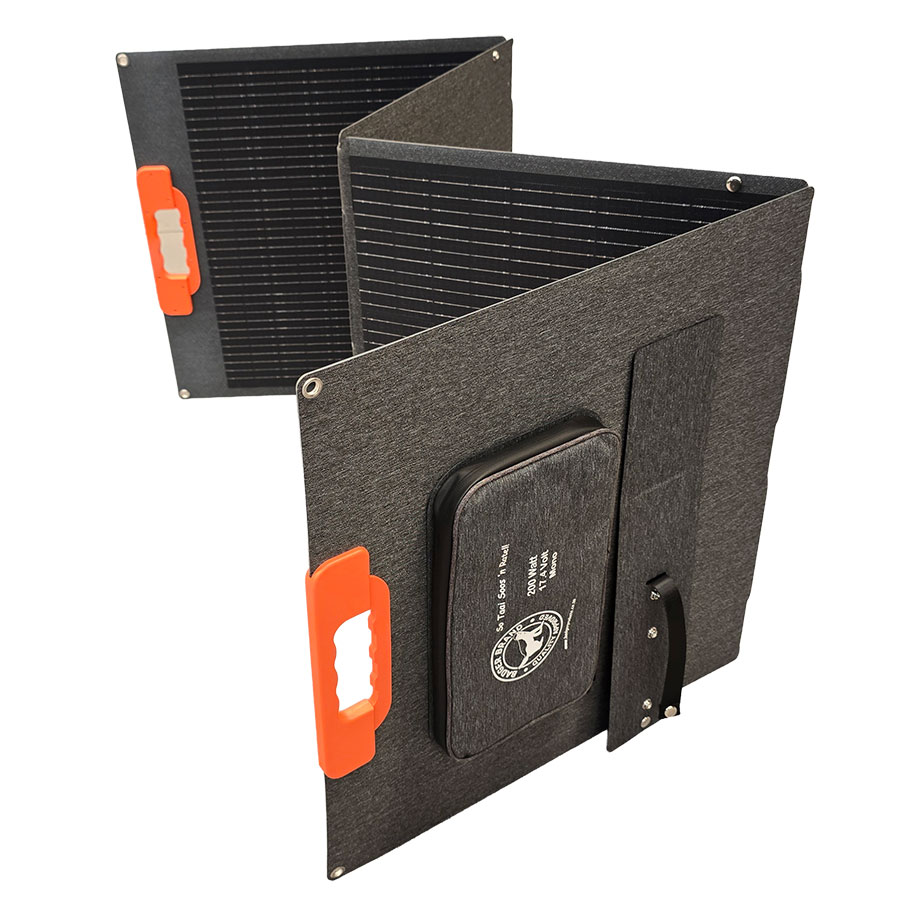

- Built with >22.7% efficient mono cells and a tough PVF surface layer, the BXF-Plus is designed for outdoor use. It folds down to a manageable 610 × 590mm and weighs only 4.3kg, making it easy to store and transport.
- No regulator is built in. For best performance and battery safety, use with a proper MPPT charge controller.
- If you want portable 200W output without drilling holes in your roof, this is the practical way to do it.

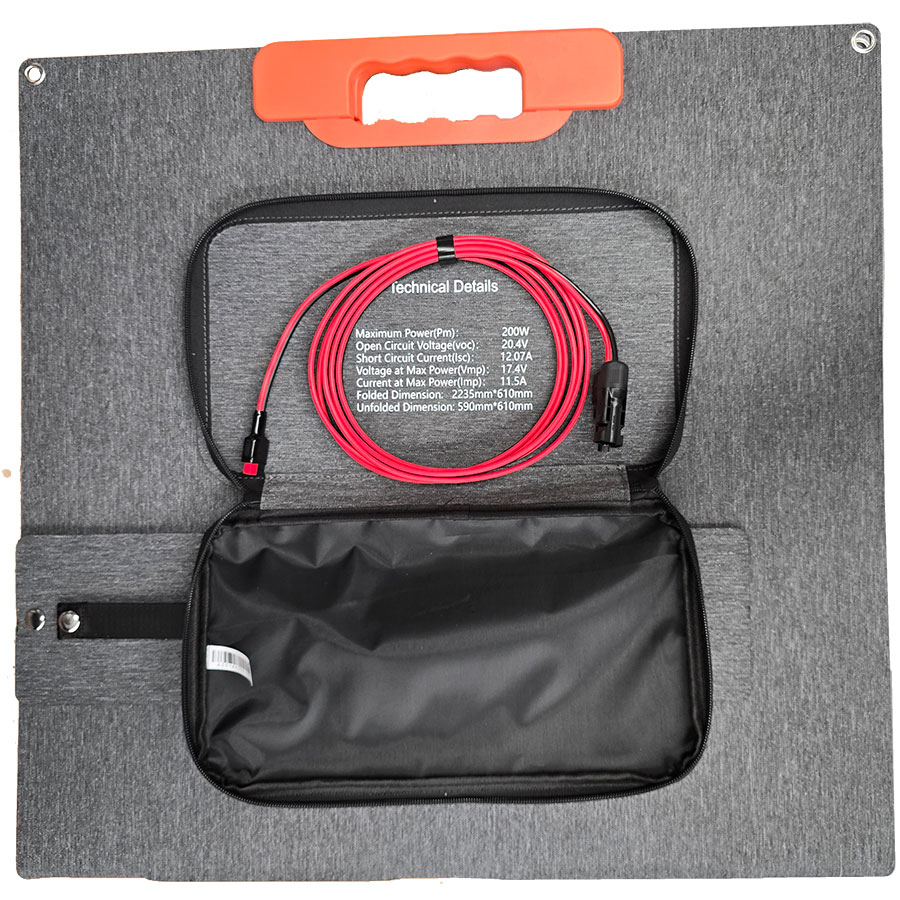

Technical Specifications
- Rated Power: 200W (4 × 50W)
- Operating Voltage (Vmp): 17.4V
- Open Circuit Voltage (Voc): 20.4V
- Operating Current (Imp): 11.5A
- Short Circuit Current (Isc): 12.07A
- Max System Voltage: 200V DC
- Cell Type: Monocrystalline
- Cell Efficiency: >22.7%
- Surface Material: PVF
- Weight: 4.3kg
- Folded Size: 610 × 590 × 50mm

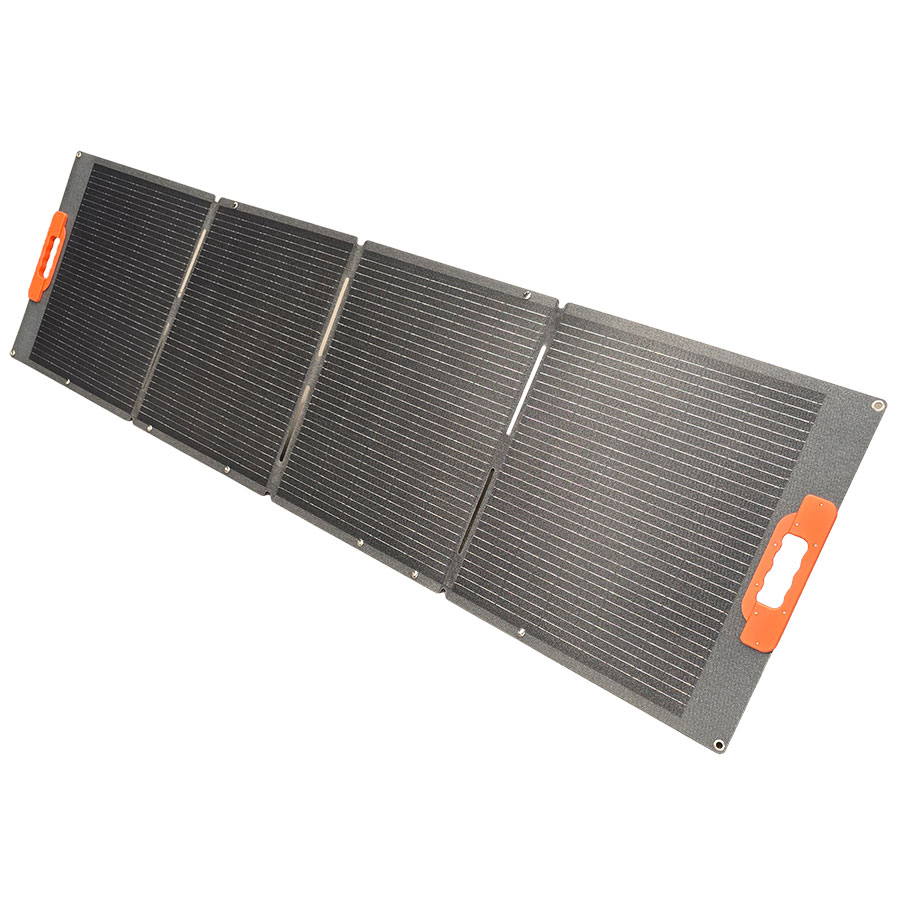

- Unfolded Size: 2232 × 610 × 3mm

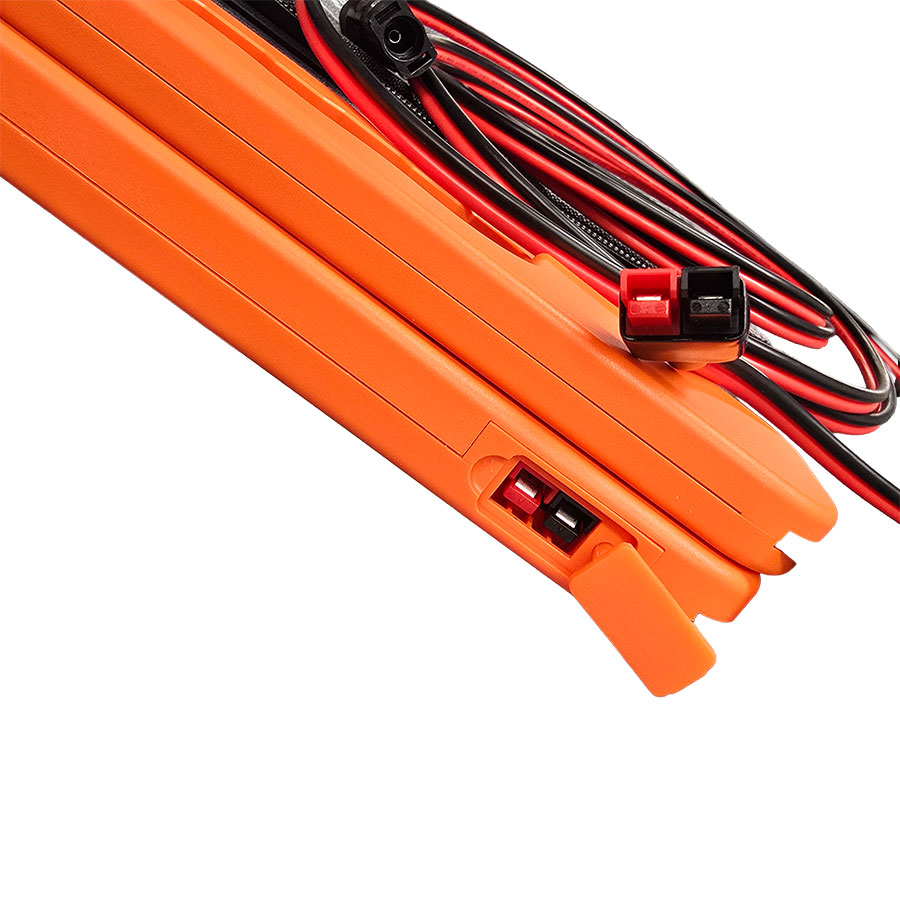

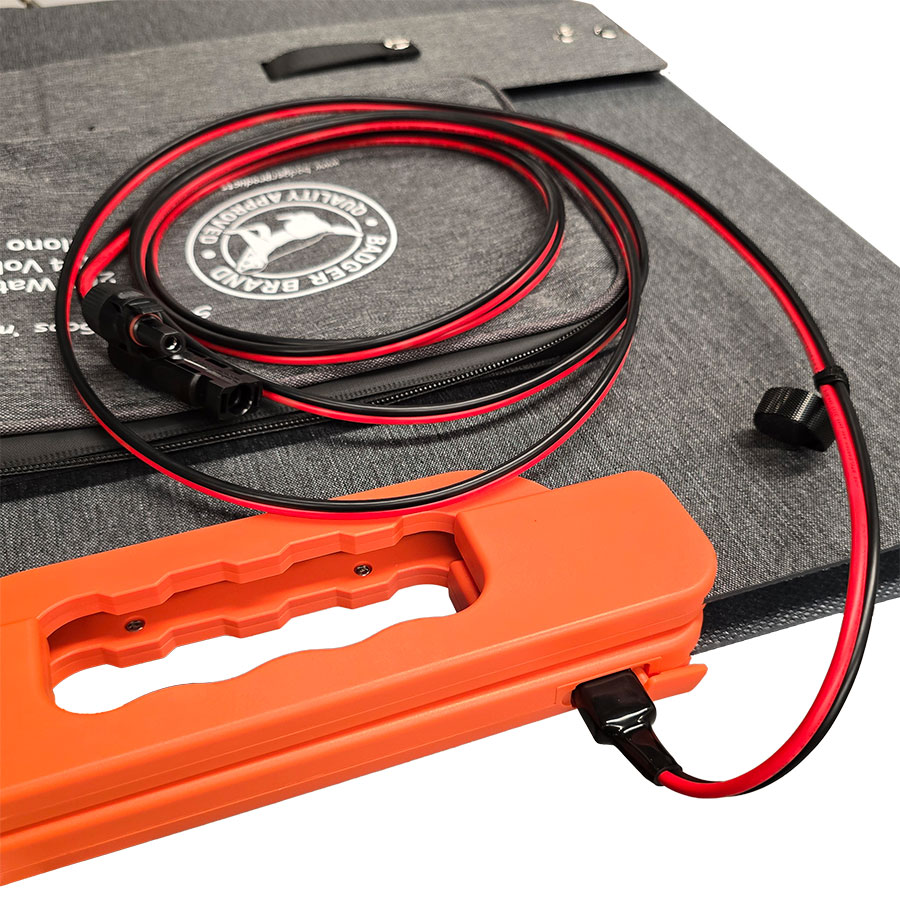

- With 3 meter cable
