Busbar 4 Way Surface Mount – Black
The 4 Way Surface Mount Busbar – Black is designed for reliable and organised power distribution in 12V and 24V electrical systems.

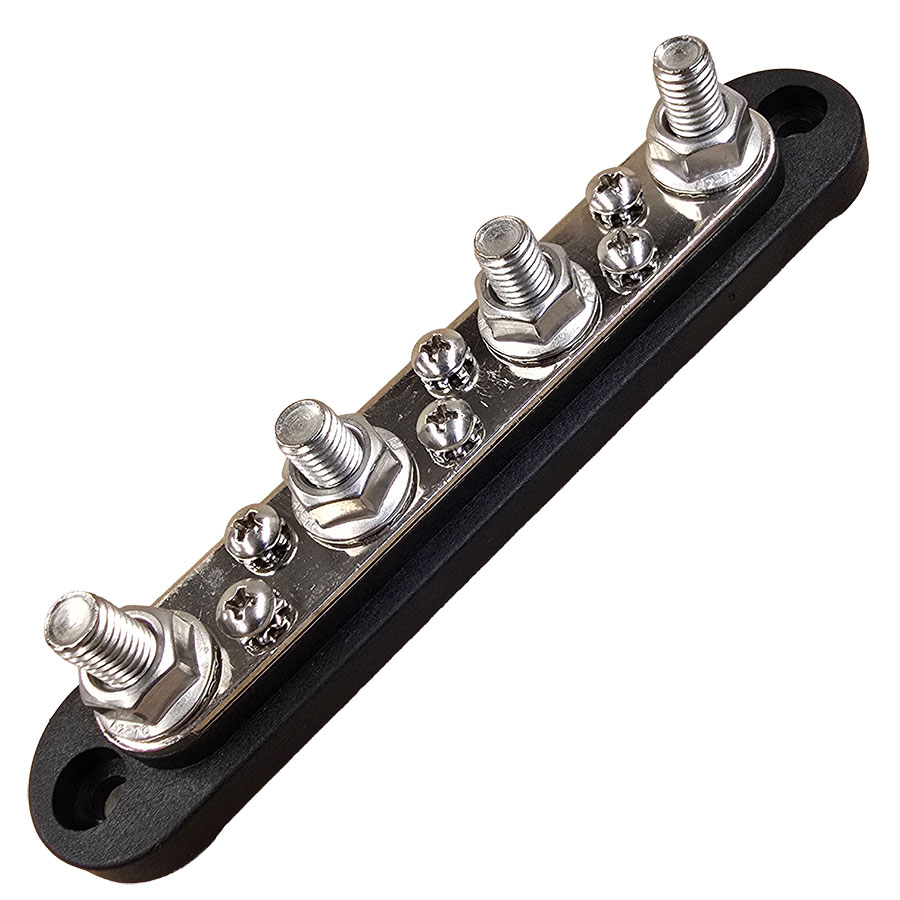

It features four M8 studs for high-current feeds and six M4 terminal screws for smaller auxiliary connections, allowing multiple circuits to be terminated cleanly without stacking lugs on battery posts. The terminal layout supports both ring and fork terminals, making installation quicker and servicing easier.

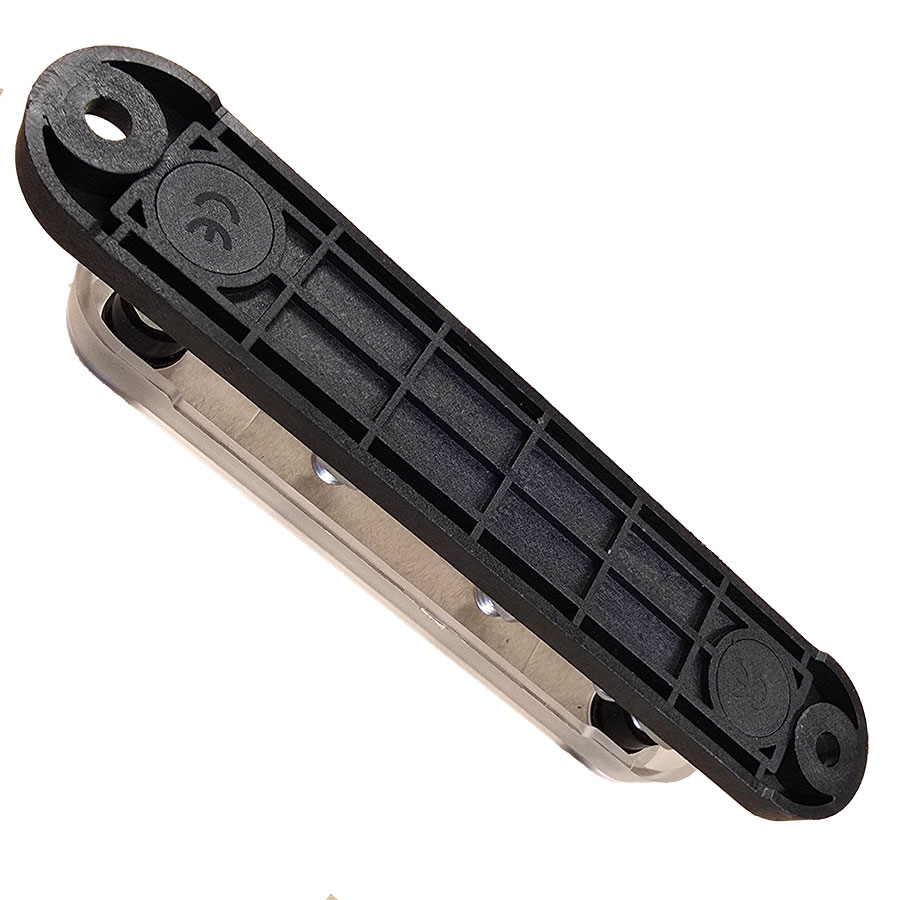

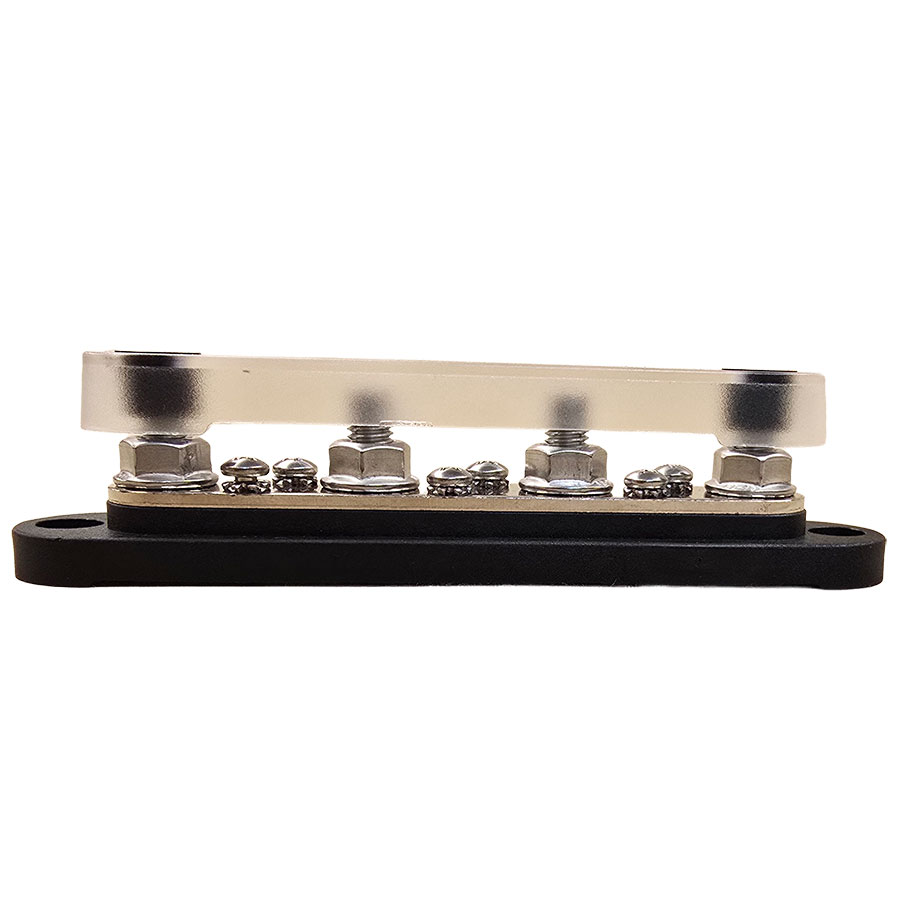

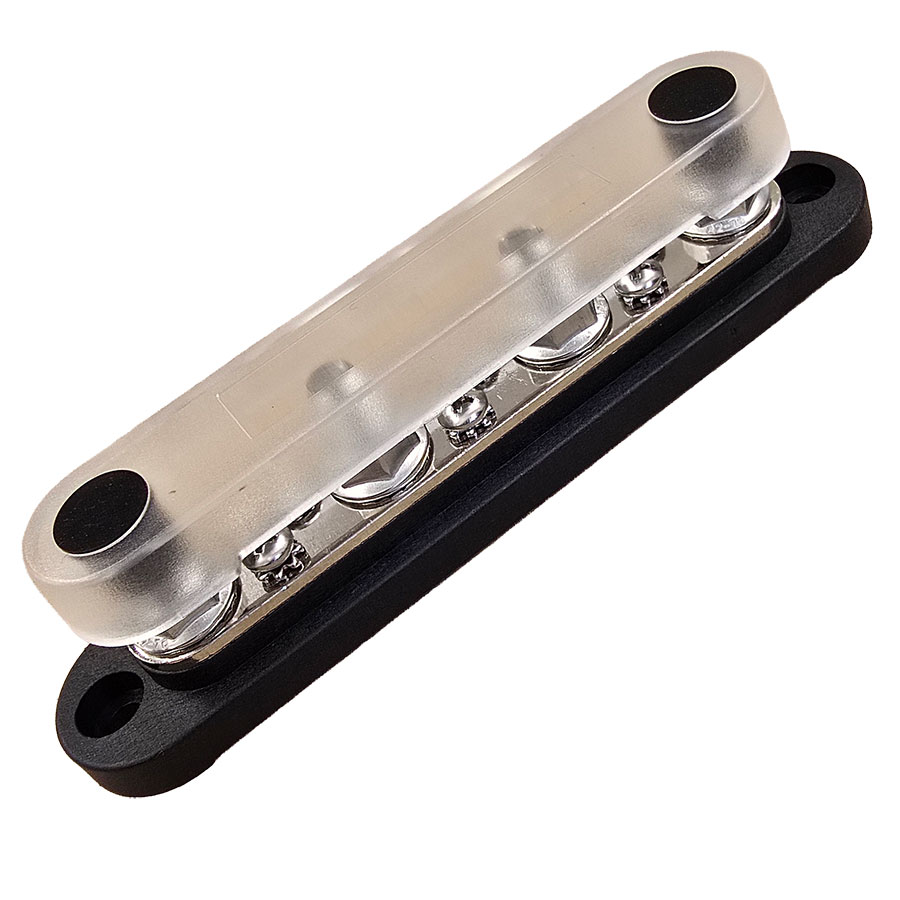

The flush-mount design allows the busbar to sit neatly in electrical panels, canopies, drawer systems, and power boards. An insulated base and protective cover reduce the risk of accidental short circuits, while stainless steel hardware ensures durability in automotive and off-road environments.
The black housing clearly identifies negative circuits, simplifying troubleshooting and future system expansion.
Suitable for 4×4 vehicles, caravans, campers, trailers, boats, and other auxiliary power systems.
- 4-way power distribution busbar
- 4 × M8 studs for main power connections
- 6 × M4 terminal screws for auxiliary circuits
- Accepts ring and fork terminals
- Flush-mount design for neat installations
- Insulated base with protective cover
- Black housing for negative circuit identification
- 12V and 24V DC systems
- Load capacity 250amps continuous
Dimensions
- Mounting screw centre distance: 133 mm
- Total length: 150 mm
- Width: 28 mm
- Height: 35 mm
