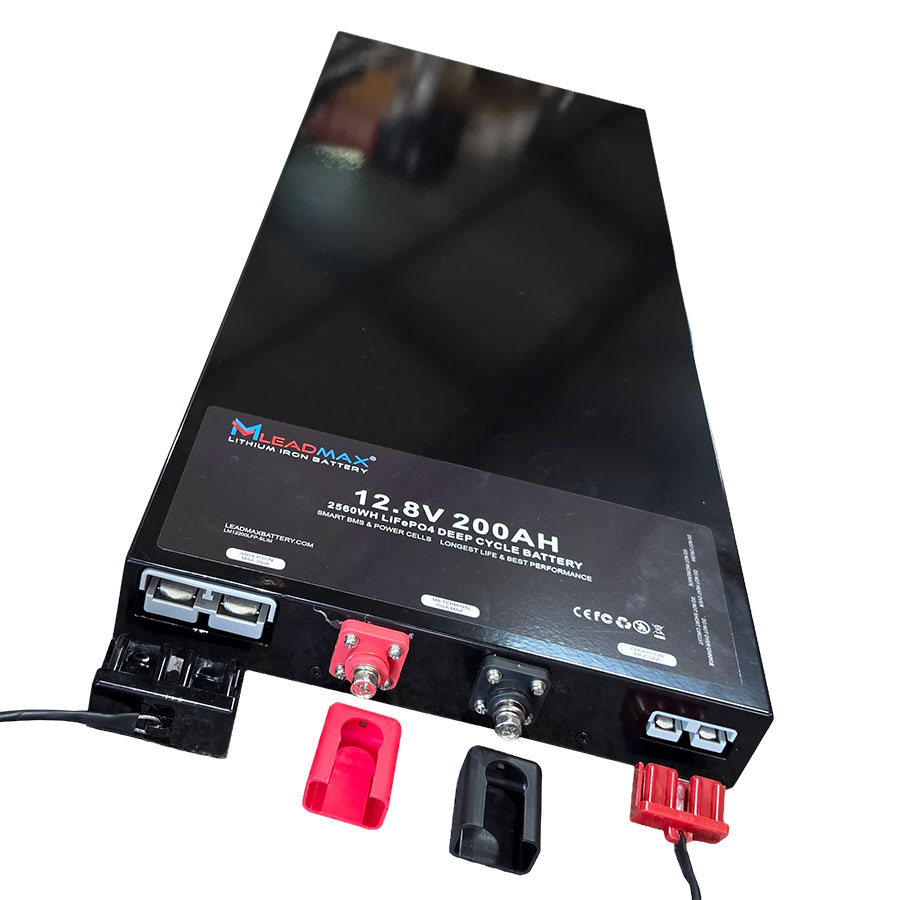

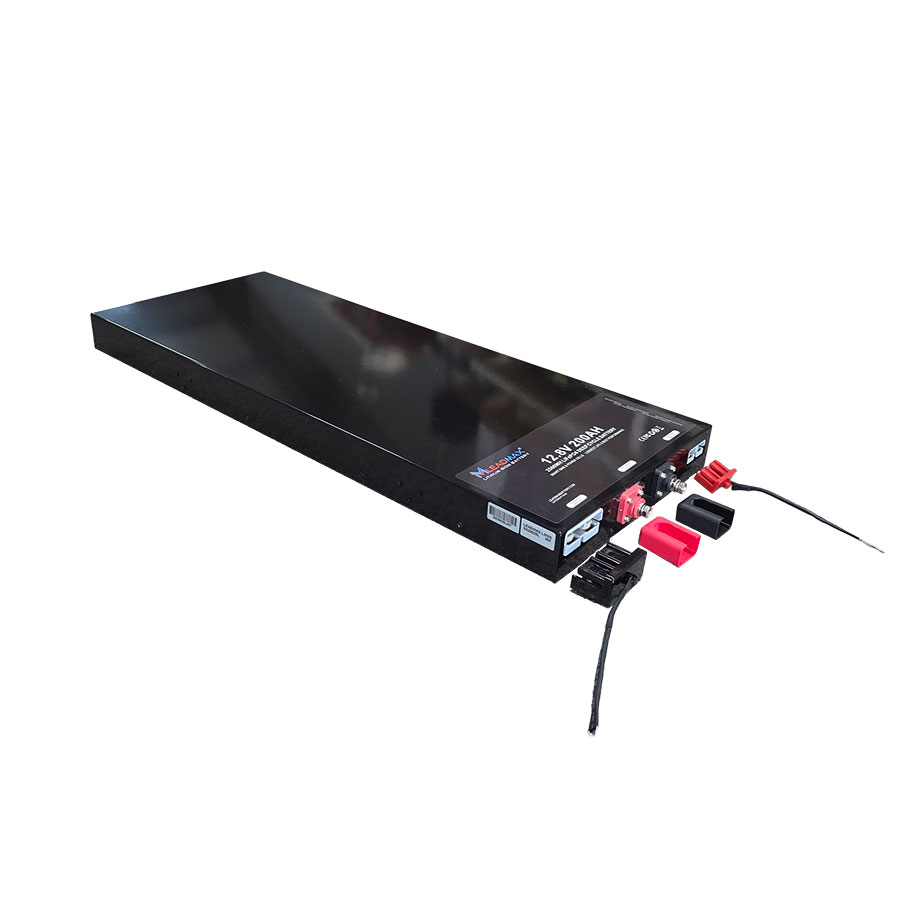

Leadmax LiFePO4 12.8V 200Ah Slimline Battery
The Leadmax 12.8V 200Ah LiFePO4 slimline battery is built for high-demand 4×4, camping, and backup power setups. With 2560Wh of usable energy, it runs fridges, inverters, lights, and full systems with ease.
Slimline design fits perfectly in canopies, drawer systems, and tight spaces.

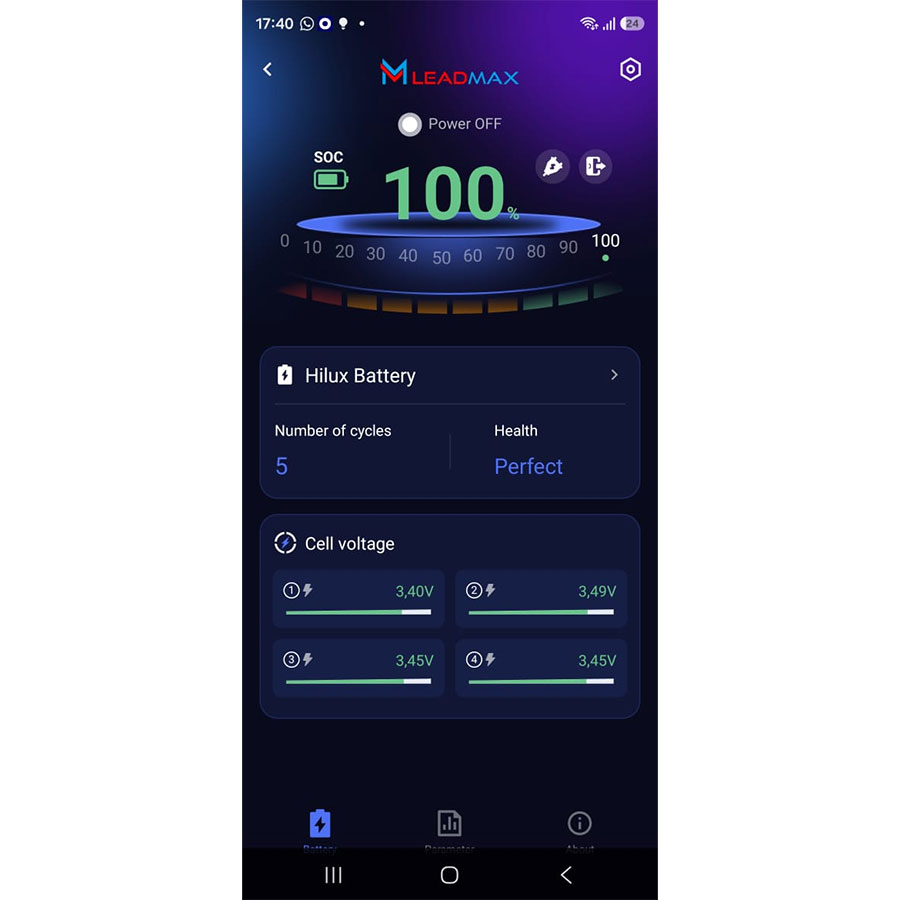

Includes Bluetooth monitoring — simply download the app and search for “LEADMAX” to view battery status on your phone.
When not in use you can switch off the battery via the APP. The bluetooth will remain active but you switch off output power which is a very good safety precaution and it will preserve power when not in use.

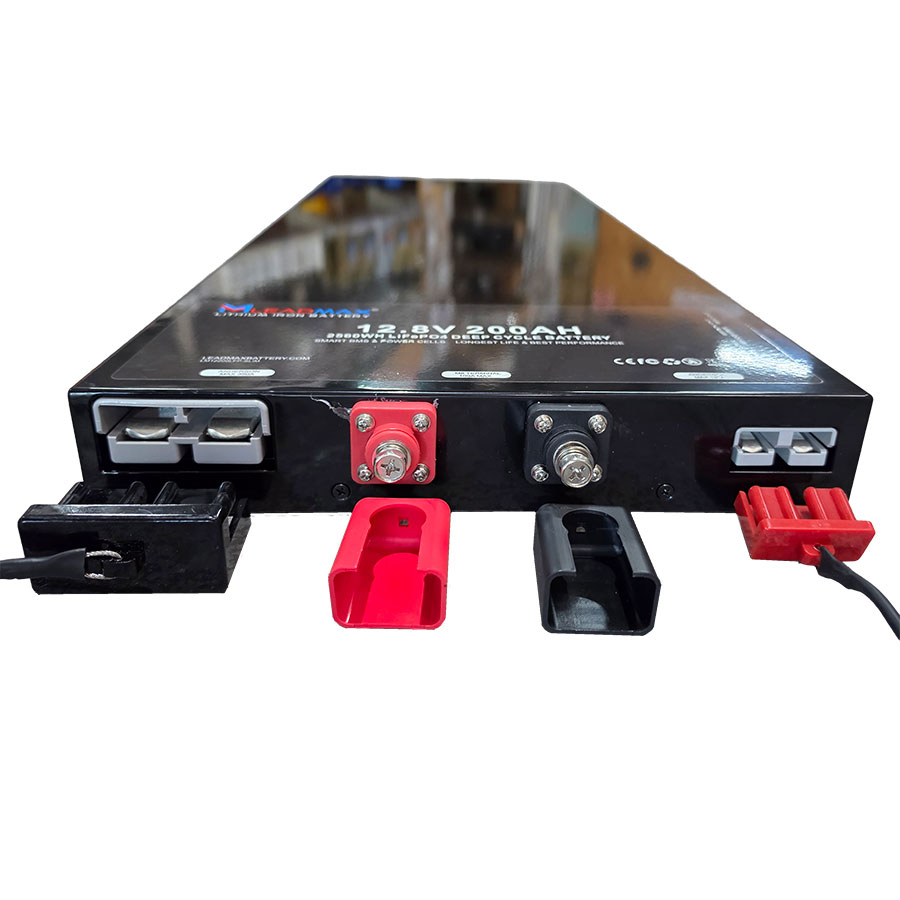

Comes ready to install with dual Brad Harrison connectors and M8 terminals, giving you flexible connection options.
Charging (Important):
Do NOT charge directly from your alternator — use a DC-DC charger.
Use a LiFePO4 charger for 220V.
If no lithium mode: use AGM (best) or GEL (will undercharge slightly).
Key Features:
- 200Ah (2560Wh) LiFePO4 battery
- Bluetooth monitoring (search: LEADMAX)
- 250A continuous discharge (1.25C)
- 100A maximum charging current (0.5C)
- 500A peak discharge (2.5C, under 3 seconds)
- Built-in BMS protection
- 1x 175A Brad Harrison (grey)
- 1x 350A Brad Harrison (grey)
- M8 bolt terminals
- Slimline design
- Mounting bracket included
Specifications:
- Voltage: 12.8V
- Capacity: 200Ah
- Size: 870 × 315 × 65 mm
- Weight: 26kg
- Protection Rating: IP56
Duty Cycles:
- 3000+ cycles @ 100% DOD
- 4000 cycles @ 80% DOD
- 6000 cycles @ 50% DOD
- 8000 cycles @ 30% DOD
