RAM® Handlebar U-Bolt Base for Rails 0.5″ to 1.25″ in Diameter

FEATURES

Zinc-coated metal U-bolt base with 1″ rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt

Compatible with any B size RAM® Mounts component; ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Backed by a lifetime warranty

OVERVIEW

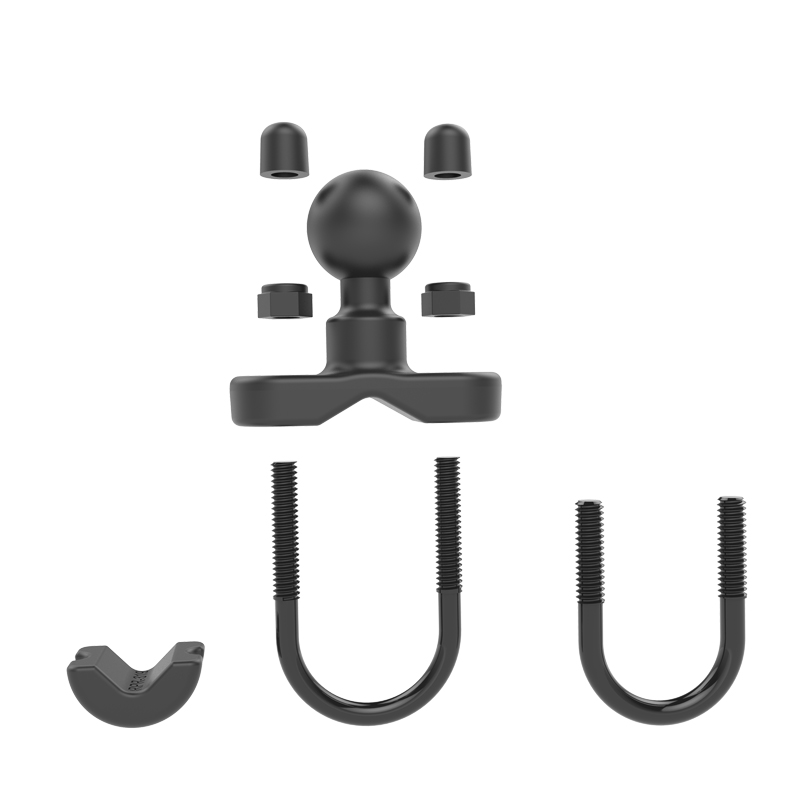

Ideal for motorcycle handlebars, the RAM-B-231ZU consists of a 1″ B size rubber ball attached to a zinc-coated metal U-bolt base. Designed to sit at right angles to the mounting rail, the U-bolt base accommodates rails from .5″ to 1.25″ in diameter. Included are black cover caps to be placed over the exposed ends of the U-bolt as well as a composite adapter that can narrow the rail to a minimum width of .5″.

HARDWARE INCLUDED
(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails
(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails
(2) 1/4″-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5″ – 1.25″ diameter

BALL/SOCKET SIZE
B Size (1″)

WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS
Marine-grade aluminum
