rubbernut-example. Rubbernut for fairing

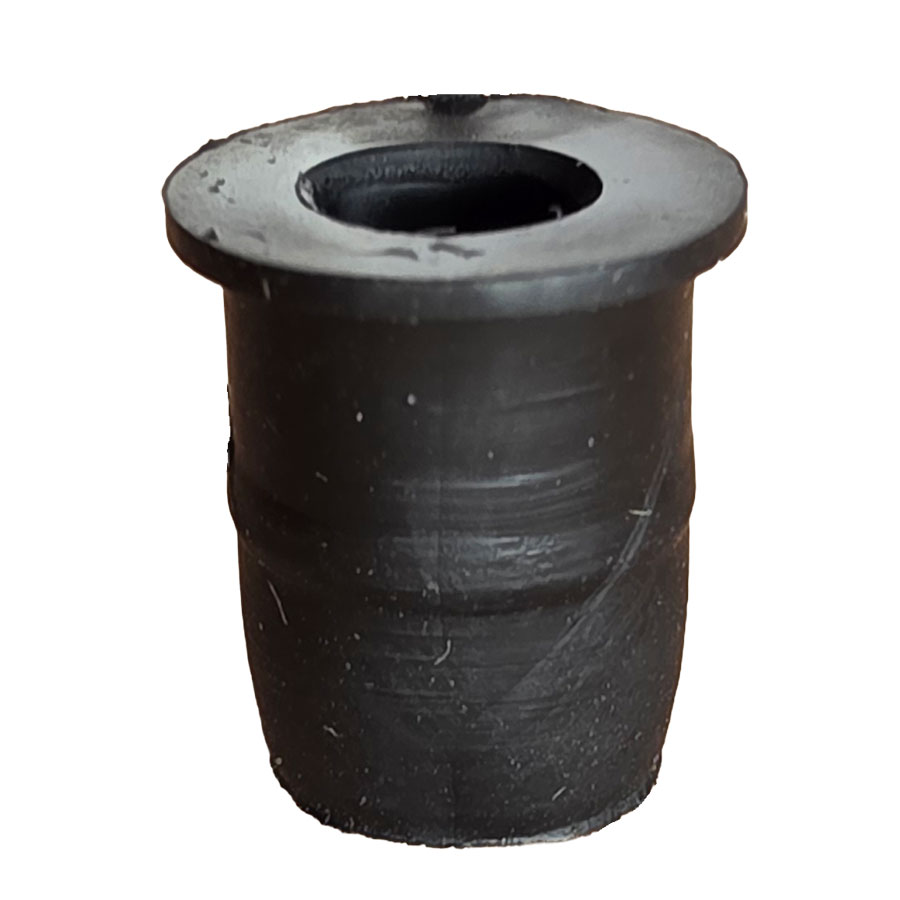

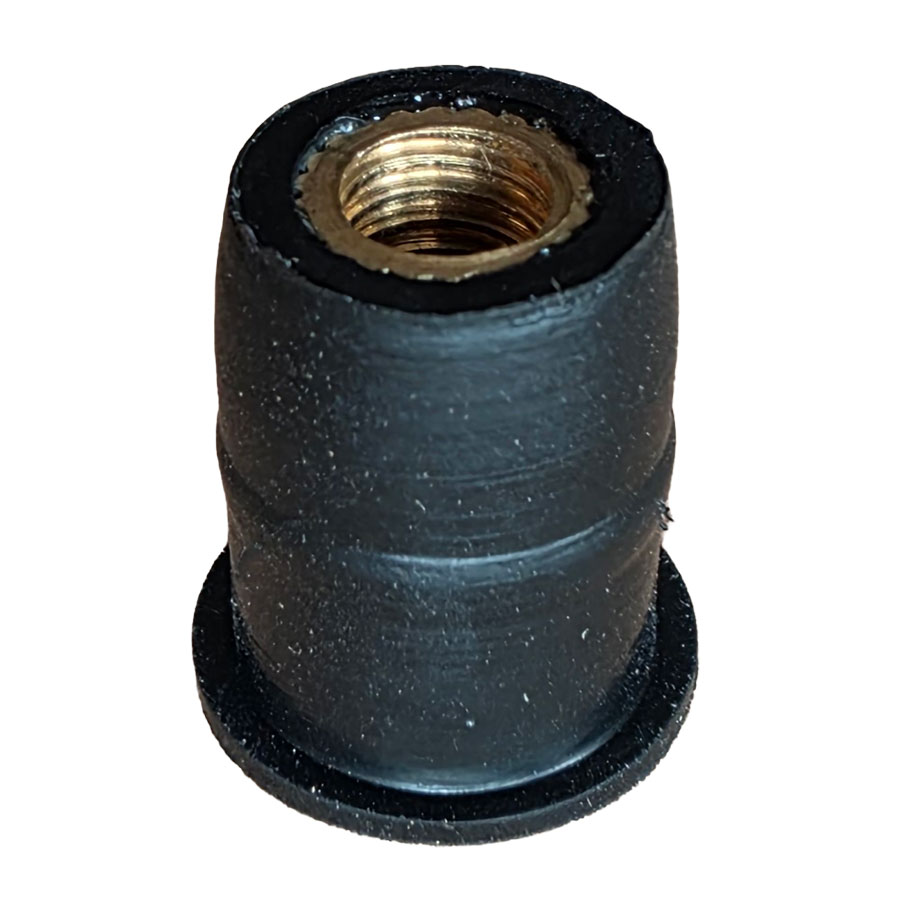

Rubber Well Nut M5 – 10 Pack

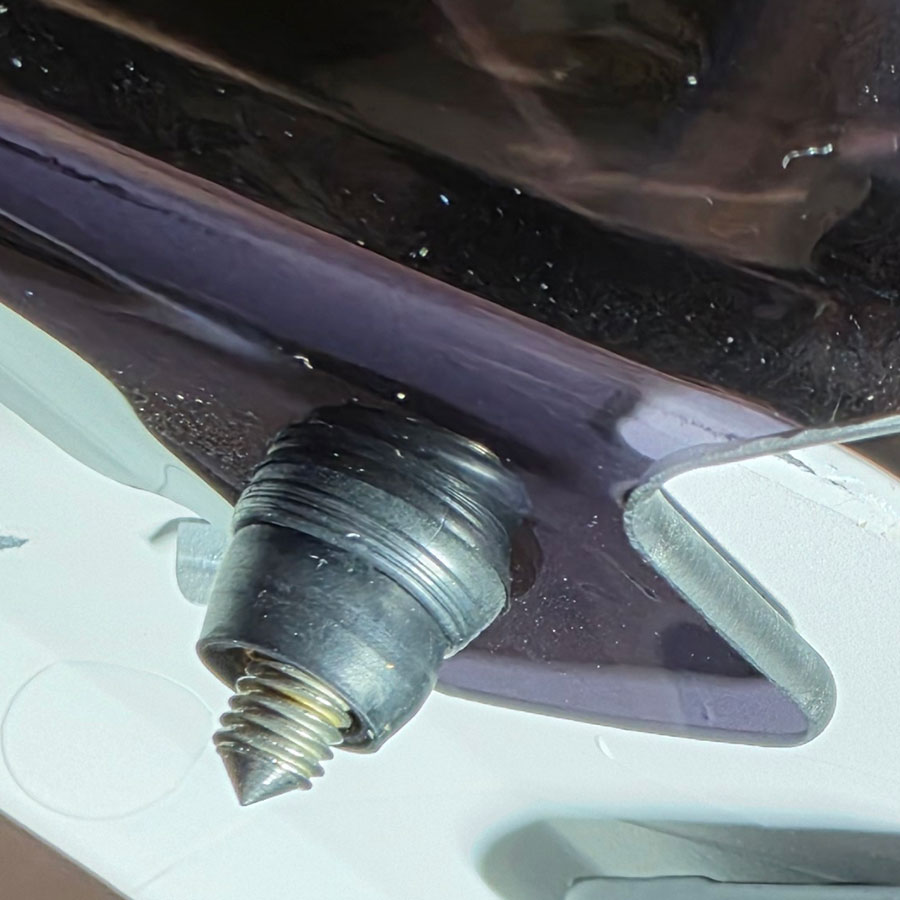

Pack of 10x M5 rubber well nuts with brass inserts. Provides a secure, vibration-resistant mounting solution for fibreglass, plastic and thin panel installations. Just drull a 10mm hole, insert the rubber nut and fasten the product with a bolt. The rubber will flare. Because the rubber flares it will seal the hole and you will have a vibration resistant application. For up 3mm thick plates. Very useful for bike fairings and windscreens. Sample pic is S1000RR windscreen.

SKU: RUBBERNUT-M5-10PC Category: Fasteners

Description
Additional information

Rubber Well Nut M5 – 10 Pack

Pack of 10x M5 rubber well nuts designed for secure mounting in thin materials where access behind the panel is restricted.

The brass threaded insert and expanding rubber sleeve create a strong fixing point while helping to isolate vibration and seal against moisture.

Ideal for automotive, marine, off-road and general-purpose applications including canopies, fairings, dashboards, body panels and accessory mounting.

Features:

M5 brass threaded insert

Expanding rubber body for secure grip

Absorbs vibration and reduces rattles

Helps seal mounting holes from water and dust

Suitable for fibreglass, perspex, plastic and sheet metal

Supplied in a 10-piece pack

Drill size = 9mm

Max plate size = 3mm

Dimensions:
OD of body = 9.5mm and 10mm around the lip.
OD of collar = 12mm
ID at top = 6mm
Thread = M5
Total length = 14mm
Length under collar = 13mm
Thickness of collar = 1mm
