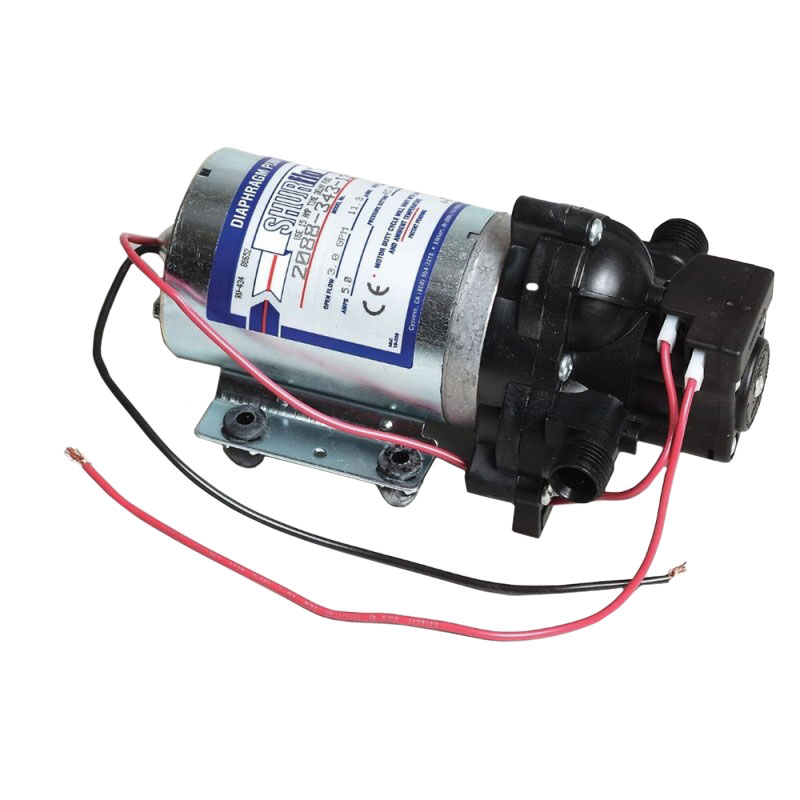

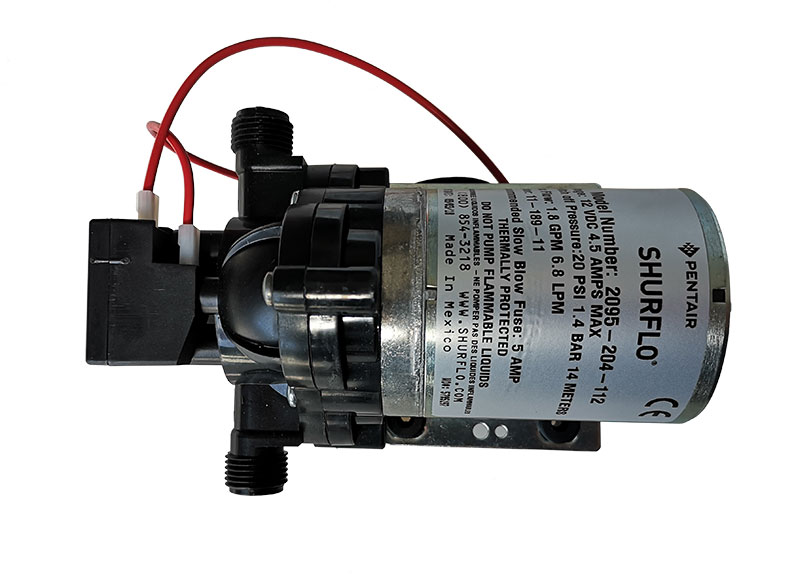

Shurflo 7 LPM Silent Water Pump – 12VDC
TYPICAL APPLICATIONS
Multi-fixture caravan potable water installations.
Other uses may include 12 VDC pressurized water systems in cabins.
This pump may be used for general water transfer.
Automatic triple diaphragm self-priming pump with integral pressure switch. Triple diaphragm feature ensures smooth water flow. Will run dry without damage.
Motor has internal circuit breaker for overload protection and are fully suppressed. Robus die cast alloy lower housing with twin ball bearing drive.
These 12v pumps have low amp draw and are very quiet in operation.
ELECTRICAL:
- Motor:12VDC Permanent Magnet, Intermittent Duty
- Protection:Thermal Overload, Automatic Restart
- Fuse Control:10 Amp Time Delay
- Recommended Adjustable Switch with Check Valve
PUMP
- Type:3 Chamber Diaphragm
- Ports:1/2”-14 NPSM-Male
- Liquid:130 °F [54 °C] Max
- Prime: [2.7 M]
- PSI:20 PSI [2.1 Bar] Max
- Run Dry: YES
NB – DO NOT USE THREAD TAPE ON PUMPS, THIS WILL VOID THE WARRANTY
NOTE – All Shurflo trailking pumps are tested for quality and operations before leaving the factory, therefore, on first use, some water might run out of the pump.
