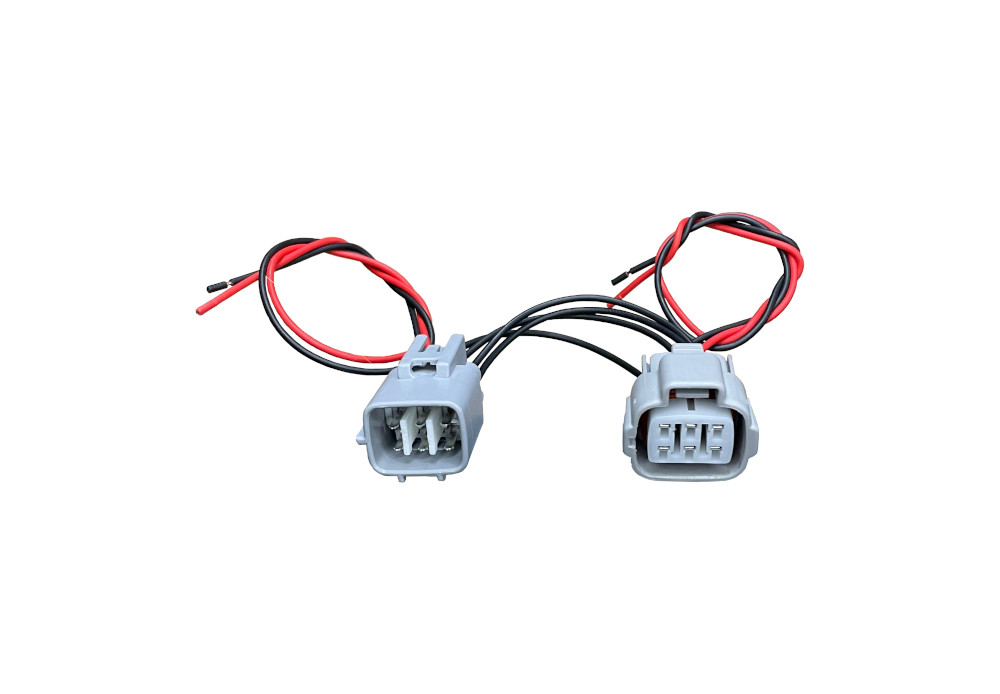

Spotlight Piggy Back adapter for Isuzu D-max/MU-X
This piggyback adapter uses the same 6-pin headlight connector found on selected Toyota Fortuner and Suzuki Jimny models.
*]:pointer-events-auto R6Vx5W_threadScrollVars scroll-mb-[calc(var(–scroll-root-safe-area-inset-bottom,0px)+var(–thread-response-height))] scroll-mt-[calc(var(–header-height)+min(200px,max(70px,20svh)))]” data-turn-id-container=”request-WEB:39e04f97-1feb-4424-907b-e3900b5e5528-5″ data-turn-id=”request-WEB:39e04f97-1feb-4424-907b-e3900b5e5528-5″ data-testid=”conversation-turn-12″ data-turn=”assistant”>
PLEASE NOTE:
- Fits Isuzu D-Max models up to 2023 with factory halogen headlights.
- Fits Isuzu MU-X models up to 2023 with factory halogen headlights.
- Not compatible with the 2024 facelift D-Max or MU-X models.
- Not compatible with factory LED headlight models.
- Verify that the factory headlight connector matches the connector shown in the product images before ordering.
- The extended red and black wires must be connected to a suitable relay and not directly to the spotlights.
- Remove the factory headlight plug from the headlight.
- Connect the Piggyback Adapter between the factory headlight and the vehicle wiring harness.
- When the vehicle’s high beams are activated, a 12V trigger signal is supplied via the red and black wires.
- Connect these trigger wires to your spotlight relay to activate auxiliary driving lights with the vehicle’s high beams.
All fitments must be carried out by a qualified auto electrician.
