Toyota Land Cruiser 300 6 Stud Wheel Spacer

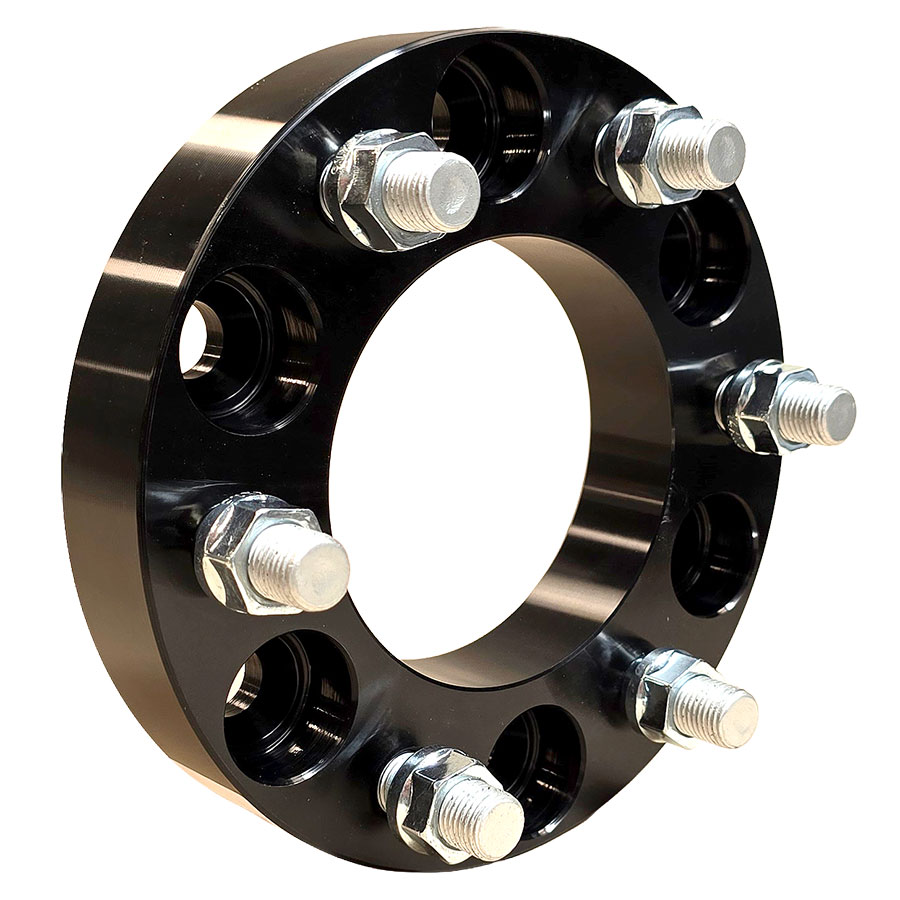

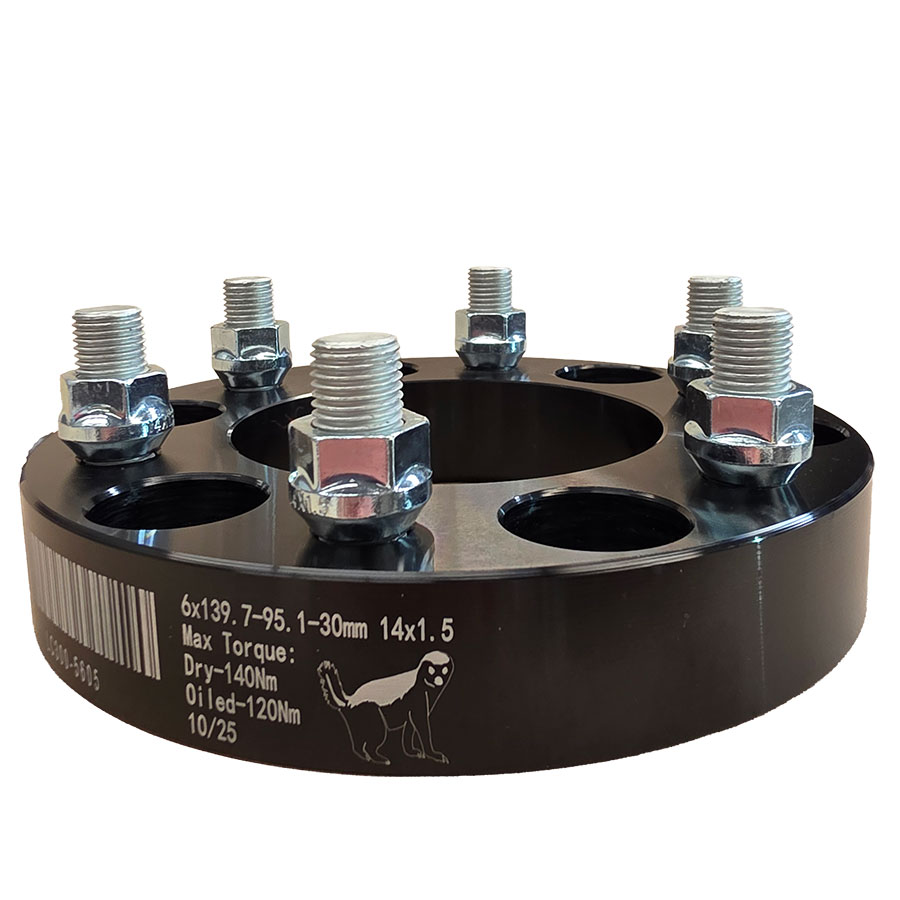

These 6-stud aluminium wheel spacers are designed for the Toyota Land Cruiser 300 a 6×139.7 PCD. They are commonly used to push the wheels outward for improved stance, wider track width, or to solve clearance issues where aftermarket or newer-model rims contact brake calipers or suspension components.
Wheel spacers are especially useful when fitting rims from newer models onto older vehicles, or when upgrading wheels that do not have sufficient offset clearance.
Each spacer bolts onto the vehicle hub using the supplied nuts on the existing studs. The wheel is then mounted onto the spacer using the spacer’s integrated high-tensile studs and your original wheel nuts.
NOTE: Price is per spacer, not per pair.
Specifications
- Wheel spacer material: Aluminium
- Thickness: 30 mm
- PCD: 6×139.7
- Centre bore: 95 mm
- Stud size: M14 × 1.5
- Stud grade: 10.9 high-tensile
- Nuts: 40CrMo high-tensile steel
- Colour: Black
Fitment Notes
- Ensure the vehicle hub surface is clean and free of debris before installation.
- Ensure the back of the wheel spacer is also clean and flat.
- Hand-tighten all nuts first.
- Torque in a cross-over sequence:
- First stage: 30 Nm
- Final torque: 140 Nm(Dry) and 120Nm (Oiled)
- Do NOT allow the use of an impact wrench.
- Re-check torque after 500 km, then every 5 000 km thereafter.
Important Warranty Notice
- Do NOT use thread locker.
Using thread locker will void the warranty, as it prevents proper torque checks during routine inspections.
Fitment Guide:
Please read the full wheel spacer fitment instructions here:
http://www.4x4direct.co.za/blog/fitment-instructions-for-wheel-spacers/
