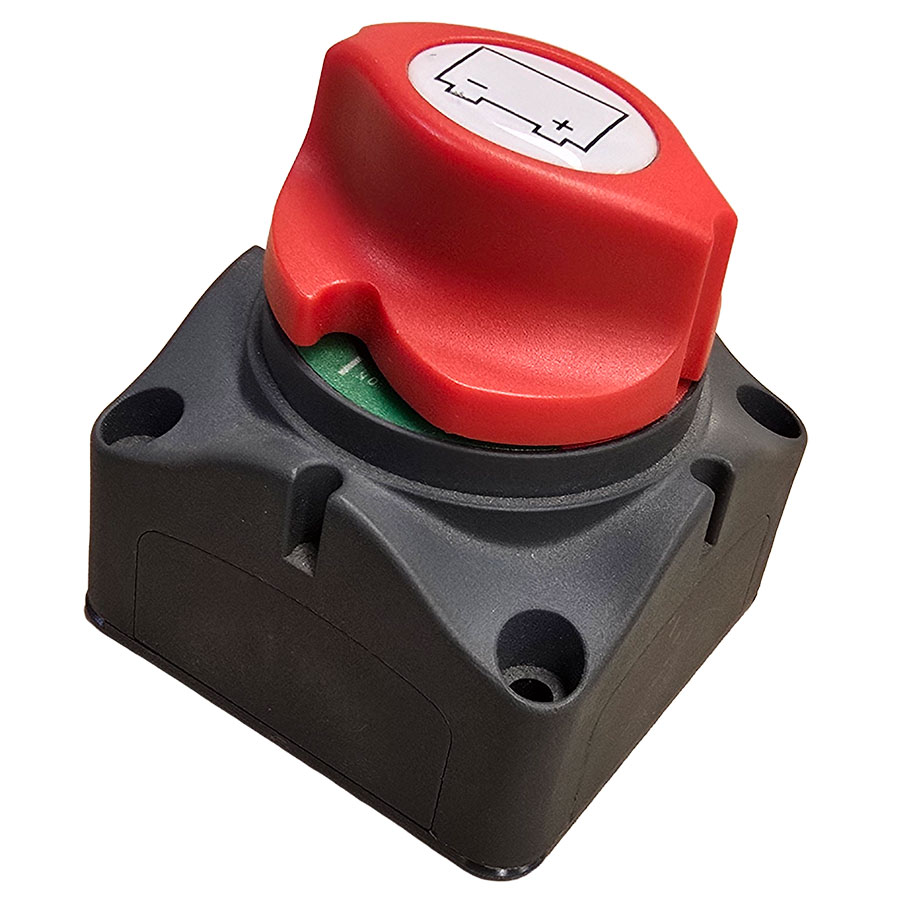

Battery Isolator Switch – Surface Mount – 200Amp
This heavy-duty battery isolator switch is designed to safely disconnect power in high-current 12–48V DC electrical systems. Rated at 200A continuous and 400A intermittent, it is ideal for use in 4×4 vehicles, caravans, boats, and auxiliary battery installations. The switch features a solid rotary on/off mechanism, tin-plated copper terminals for reliable conductivity, and a durable housing suitable for surface or recessed mounting. Used to isolate batteries during maintenance, storage, or emergency situations.
Specifications:
- Continuous rating: 200A DC
- Intermittent rating: 400A DC
- Voltage rating: Up to 48V DC
- On / Off rotary isolator switch

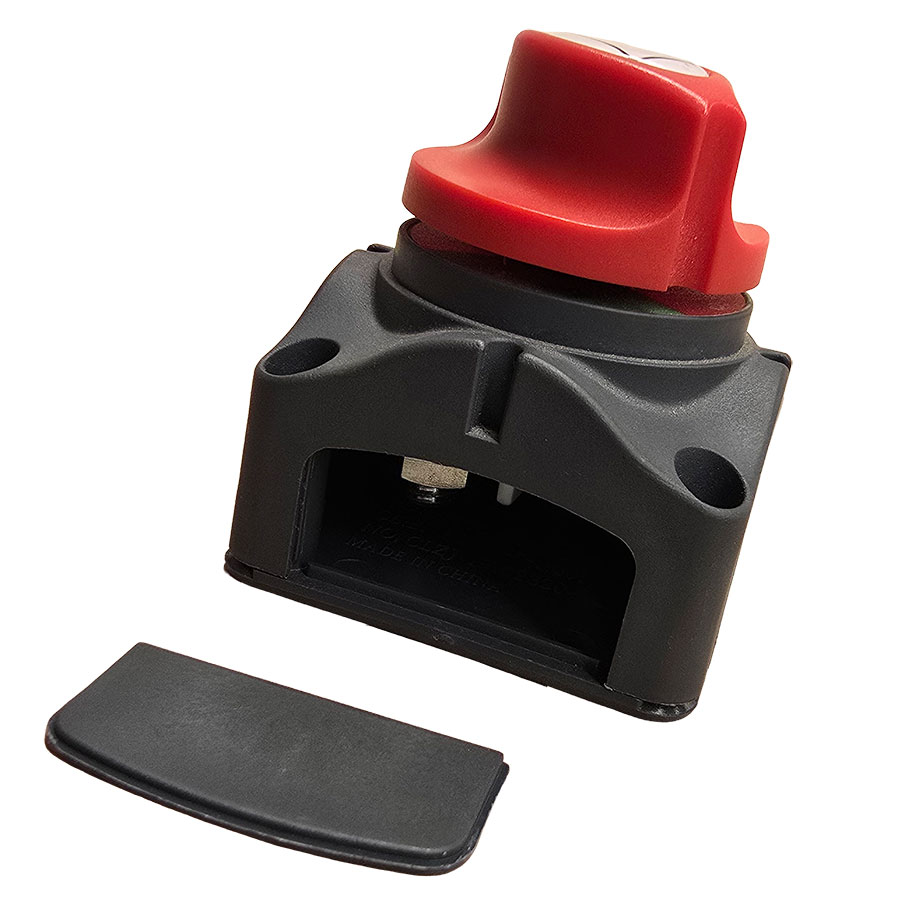

- Surface or recessed mount

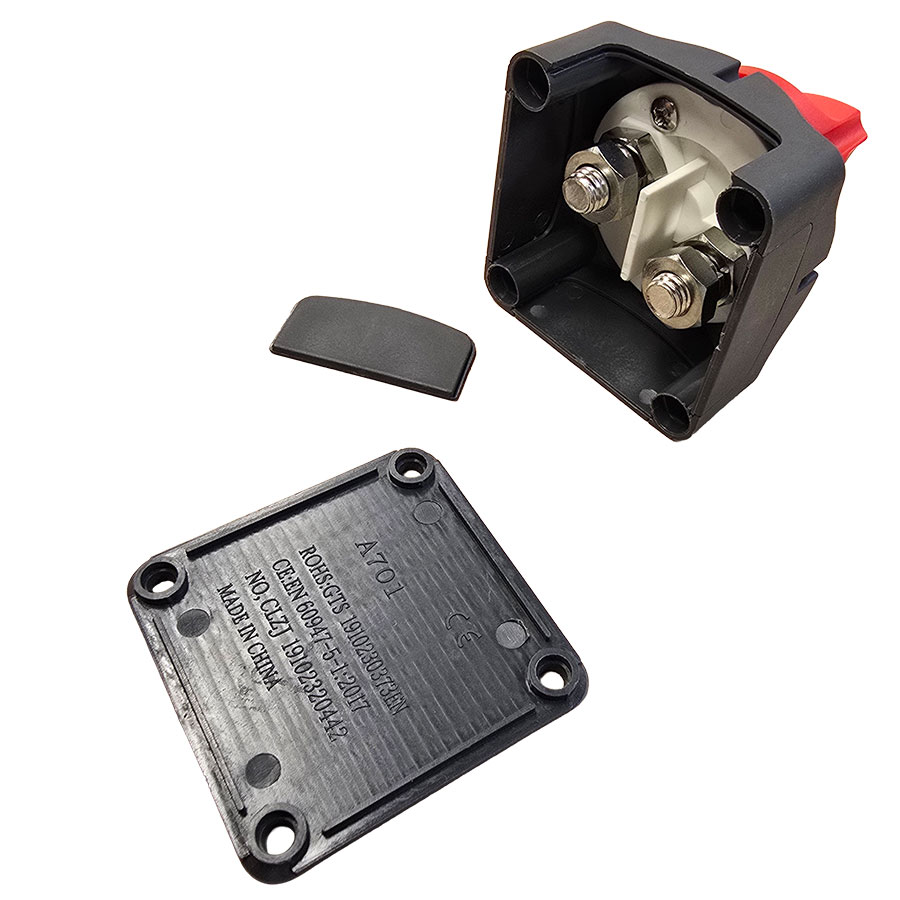

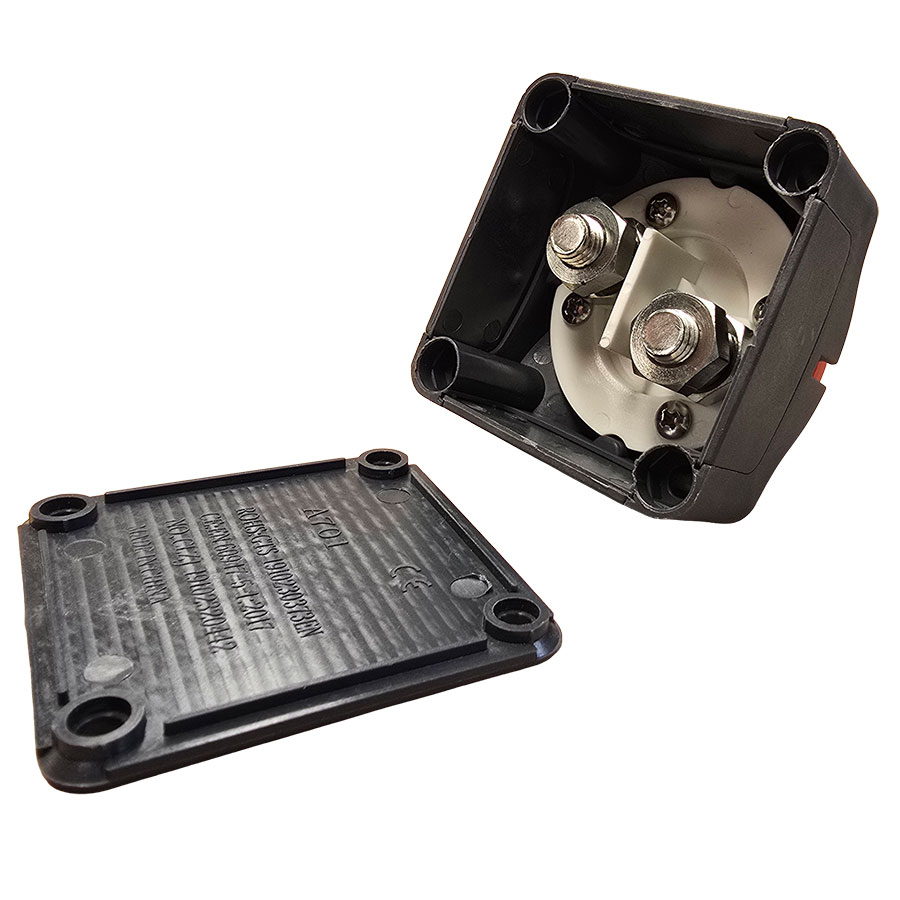

- Tin-plated copper studs and nuts
- Terminal size: 2 × 10 mm (3/8″)
- Suitable for automotive, 4×4, marine, caravan, and trailer use
