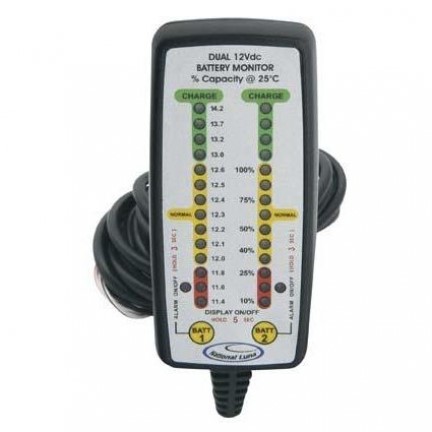

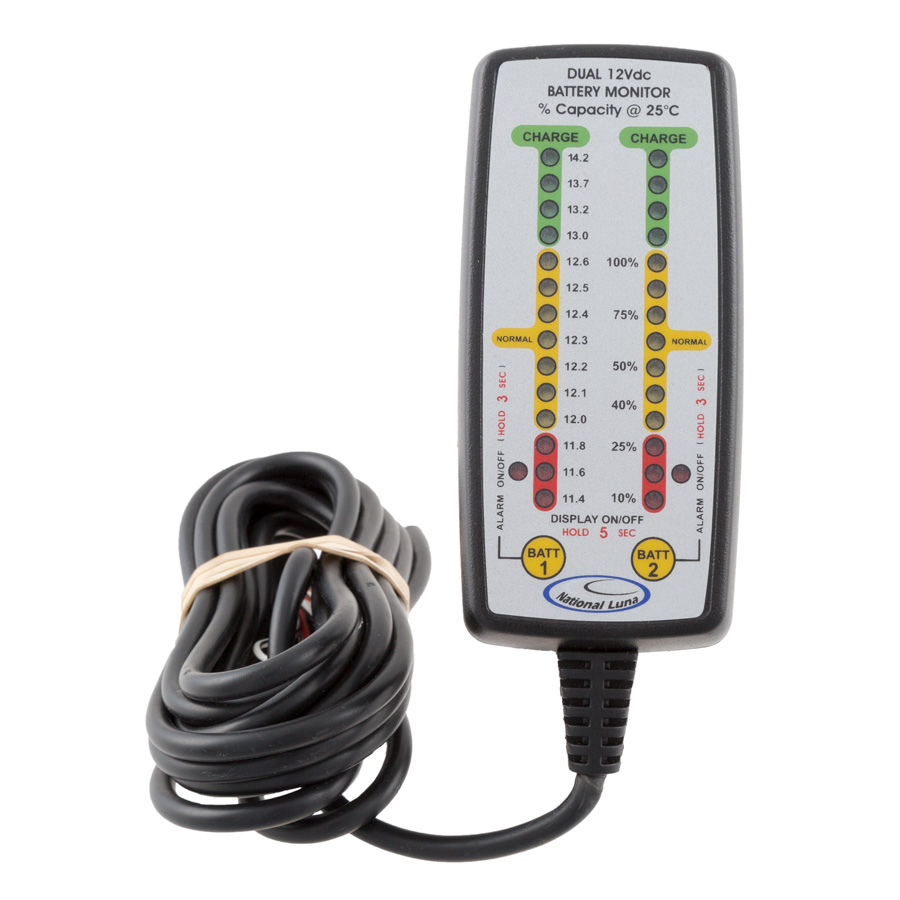

National Luna Dual Battery Monitors are ideal for monitoring 2 lead-acid batteries in a single installation such as dual-battery systems in 4×4’s and campers. The digital technology used in the dual monitors allows the non-linear characteristics of lead-acid batteries to be accurately followed.
A feature of one of the National Luna dual battery monitors is the independent negative – allowing this particular model to be used in vehicles with 24V systems. Dual battery monitors can be used independently, or in combination with any dual-battery system.
Features
Simple installation
2 individual battery displays
Excessive discharge warning
Over-charge warning
Polarity protected
Extremely low power consumption
11.4V to 15V operation (ideal for automotive use)
Programmed for non-linear lead-acid battery characteristics
Audible alarm as standard (can be muted)
Display on/off feature (Sleep mode)
Recessed version available for panel-mounting
3.5-metre cable (standard)
Specifications
Physical size 107mm (l) x 48mm (w) x 20mm (h)
Weight 185g (dual monitor)
190g (dual controller, incl cable)
Power supply 8Vdc – 15Vdc (display range: 11.4V – 14.2V)
Low-voltage warning
DC voltage below 11.4V
Over-charge warning DC voltage above 14.65V
Cable Dual monitor – Fixed 3.5 meter 4-core cable
Dual Controller – Removeable 3.5 meter 4-core cable
Power consumption
8mA (sleep mode-option) , 35mA Average
40mA max
