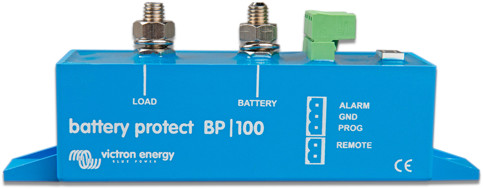

The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.

The BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the Battery terminal to the Load terminal. In case of use with a load, the battery connects to the Battery terminal, and in case of use with a charger, the charger connects to the Battery terminal.

Max continious load – 100Amps
Peak current (during 30 seconds) – 600Amps
Oerating voltage range – 6-35Volts

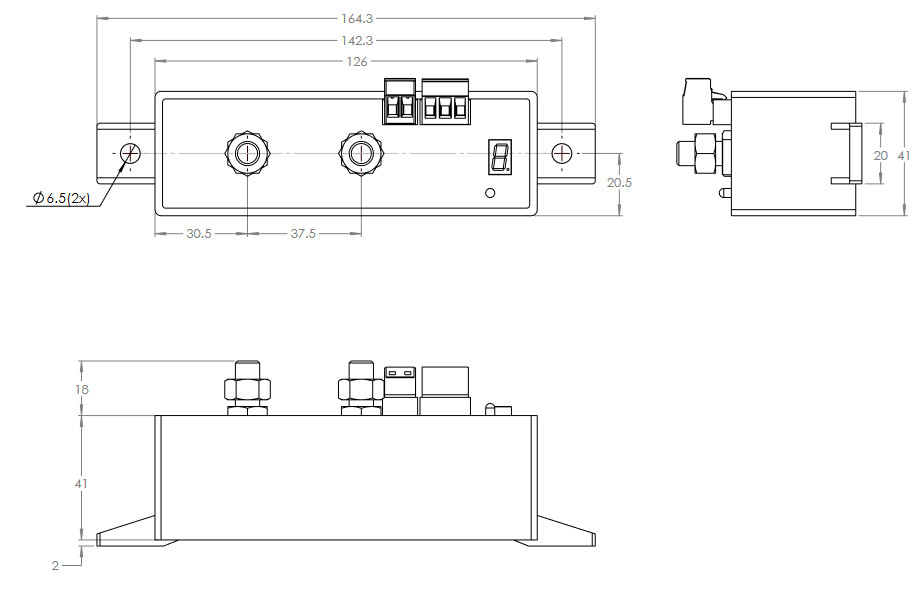

Dimensions 61 x 41 x 164mm

*Non Bluetooth

For a comprehensive datasheet click here
