METERVOLTAMP100 #1. Volt and amp meter 12 volt

Volt and Amp Meter with Shunt – 100 AMP

NOTE: These Amp meters are more accurate towards the upper end of the range. Do not buy a 100Amp meter if you intend to measure 1 Amp, it will not work.
If you will measure low amps like a camping fridge (typicaly 4 to 8 Amp), rather opt for the 20 Amp unit.

SKU: METERVOLTAMP100 Categories: Bargain Bin, Meters

Description
Additional information

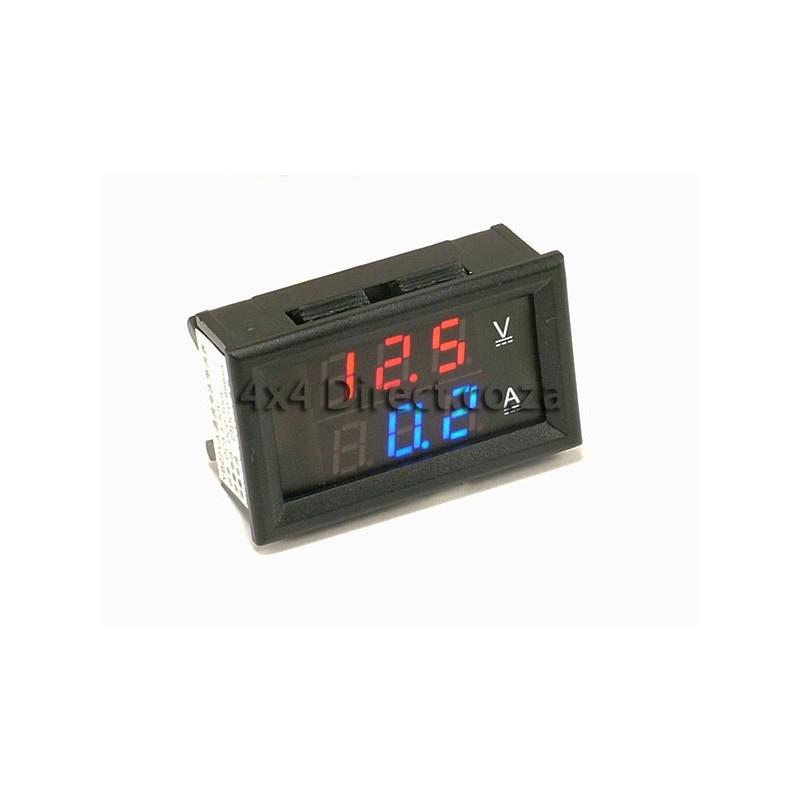

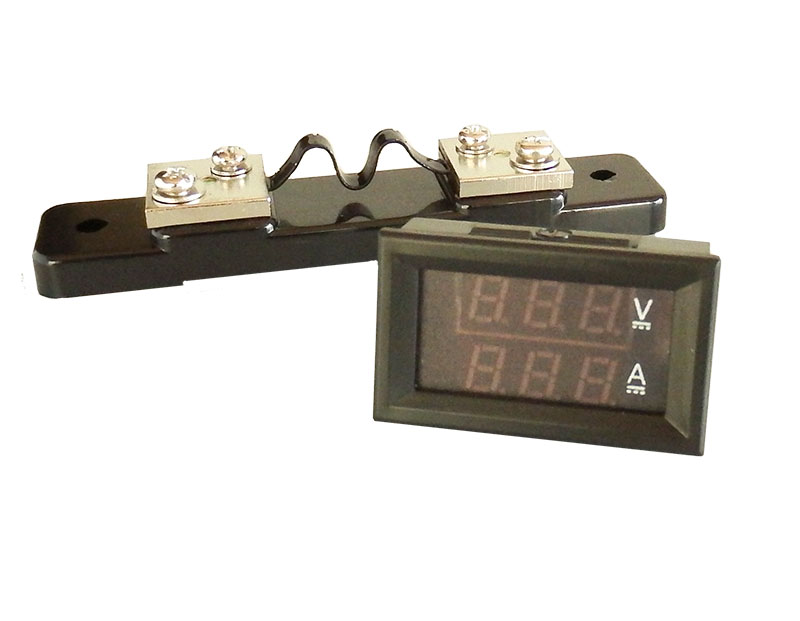

100A Volt and Amp Panel Meter with Shunt

Measure Voltage Range DC 0-100V

Operating voltage:DC 4.5 ~ 30V

Minimum resolution(V): 0.1V

Measure Current Range 20-100A forward current

Minimum resolution(A): 0.1A

Accuracy: 1% (± 1 digit )

Operating voltage:DC 4.5 ~ 30V

Operating current: <20mA

Dimensions: 48 x 29 x 21mm

Mounting cutout: 45.5 x 26.5mm

Refresh rate: about 500mS / times

Operating temperature: -10 to 65° c

Operating Humidity: 10 to 80% (non-condensing)

NOTE: These Amp meters are more accurate towards the upper end of the range. Do not buy a 100Amp meter if you intend to measure 1 Amp, it will not work. If you will measure low amps like a camping fridge (typicaly 5 to 8 Amp), rather opt for the 20 Amp unit.
