Watt Meter 0-60V DC 0-100A Intermittent 50amp Continuous

Watt Meter – 50 Amps

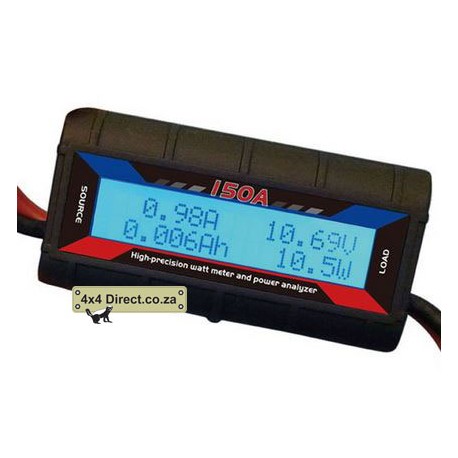

Constantly displays the actual values for voltage [V], current [A] and power [W]
Records and show in the bottom left, Peak Amps, Peak Watts and Watt per hour and Average Volts. The recorded data will reset each time you switch off the source power.

Specifications:

1. Operating Voltage    0-60V DC


2. Current    0-100A Intermittent


3. 50A Continuous


4. Temperature Range    0-50°C ambient air temp.


5. Measurement Update Period    400mS


6. Data Queue Sequence Time    2sec


7. In Circuit Resistance    0.001 Ohms


8. Operation Current    7mA


9. Auxiliary Power Voltage    4-60V DC


10. Case Dimensions    84 x 43 x 25mm (LxWxD)


11. Weight    140g


12. Display    16 character x 2 row STN LCD
