Battery Protector Low cut off-Designed for Driving Lights.

Battery Protector Low cut off
Ideal for DRL Lights
Lights will switch on when Bike or Car is started
Lights will switch off when engine is switch off
Unit will engage when Battery voltage reach 13.2V
Will disengage when voltage drop to 12.8V

SKU: BATPROTECT Category: Battery Monitor and Protect

Description
Additional information

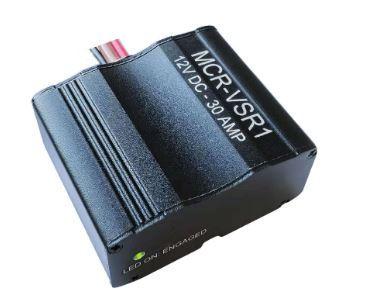

This unit is a MICRO VSR Voltage Sensitive Relay Module designed with
an LED indicator and an aluminum heat sink

How to work:
The VSR is connected between the positives of the main and load (DRL, etc.)
and works according to the voltage.
When the engine is started and battery reaches 13.2 V, the VSR engages,
allowing currant through to the load. When the engine is stopped and voltage drop to 12.8volts,
the VSR disengages, separating the battery and load. This system eliminates the
possibility of draining the battery.

Specifications:
 Rating : 12V dc 30A continuouss ,
 Disengage 12.8Vdc, 5s delay:
 Engage 13 2Vdc 5s delay: . ,
 Standby current: 10mA max.
 Power cables: 14AWG
 High voltage protection: 15.5Vdc
 Operating current: 120mA@14.0V
 Ingress protection IP67:
 Dims: 45*54*26mm (Aluminum housing)
 Net weight: 0.10Kgs
